FPC Female Terminal Automated Assembly & Inspection & Packaging Machine

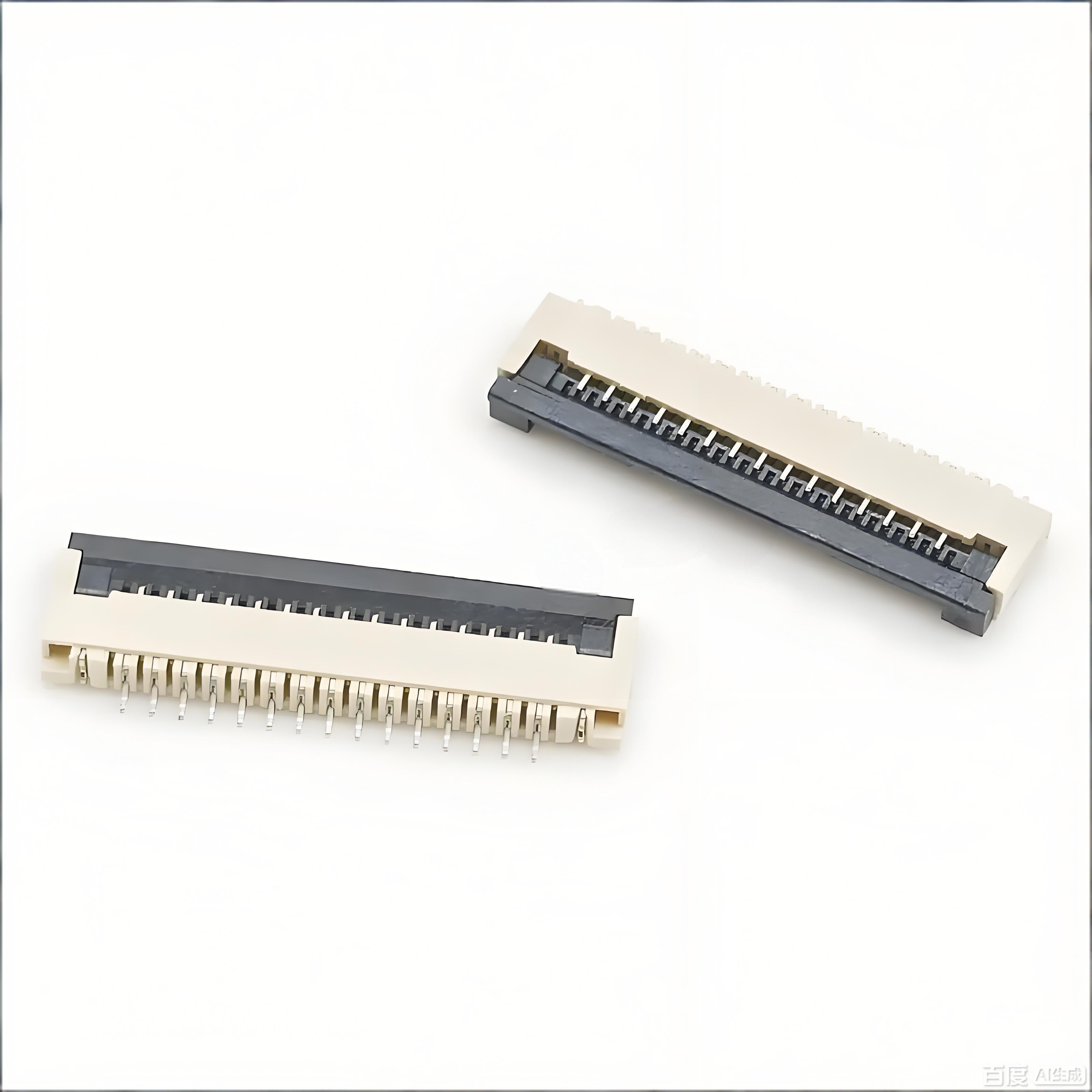

This equipment achieves a fully automated process, capable of precisely completing the automatic assembly of the four core components of the FPC female connector—housing, contact, latch, and CAP. Following assembly, it integrates online inspection function and performs automated packaging of qualified products, ensuring every connector leaving the factory complies with quality standards.
Application scenarios: This equipment is a high-precision automated production line specifically designed for FPC female connectors. It is widely used in manufacturing connectors for motherboards and flexible circuit assemblies of smartphones, tablets, and similar devices.
Product Specifications
|
Items
|
Parameter
|
|
Rated voltage
|
AC 220V 50Hz
|
|
Equipment power
|
5.5 kW 100 A
|
|
Air source pressure
|
0.5-0.7 MPa
|
|
Material transfer
|
Runner-type transfer
|
|
Standard parts
|
Customer-specified brands
|
|
Dimensions
|
L 3100 × W 800 × H 1950 mm
|
Product Features
High-Speed and High-Precision Pin Insertion Process
For the difficulties in blind insertion and alignment for Pitch 0.3mm/0.5mm FPC, this automated equipment achieves high-precision positioning assembly to manage minor deviations during insertion while preventing component damage. Its modular design facilitates equipment maintenance and fixture replacement. Equipped with high-speed cam-driven pin insertion module with a maximum rotational speed of 1800 r/min, it achieves micron-level precision insertion. Besides, it supports one-click program switching for rapid adaptation to the production of products with different specifications.
Zero-Defect Full-Inspection Vision Quality Assurance
Equipped with Japanese-imported VISCO vision inspection system, it ensures precise identification and comprehensive inspection of every single product, preventing any defective products from passing through and effectively guaranteeing delivery quality.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
