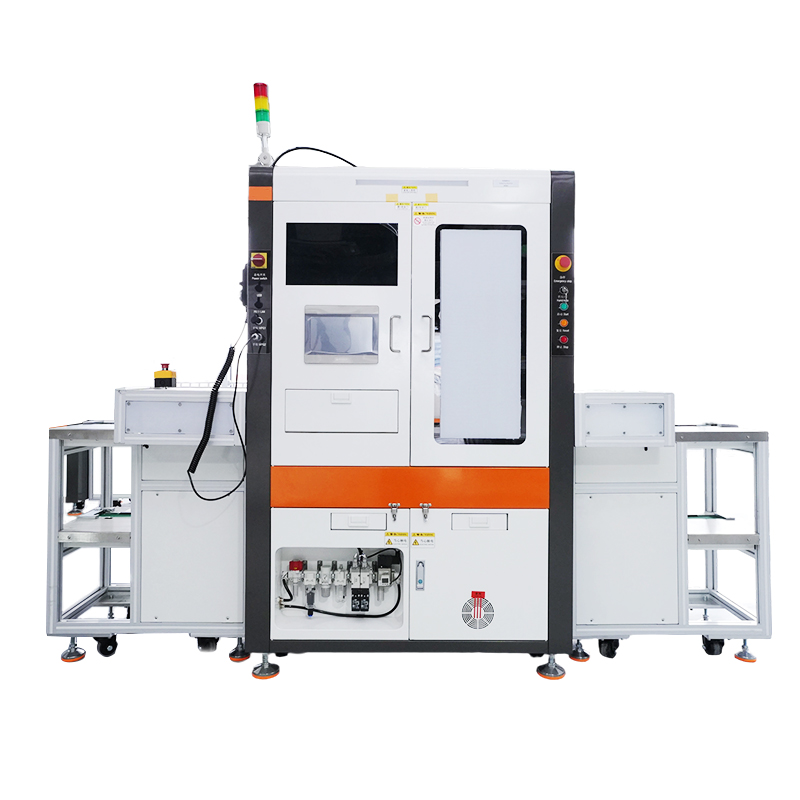

High-Speed Cable Assembly Equipment

Building upon the design of 3D vision positioning and PGRS soldering, this equipment incorporates an in-line loading/unloading system to further enhance automation at this station—enabling automated loading, automated visual recognition, conductor deviation rectification, soldering, and automated unloading. It is especially suited for vision-guided applications and continuous in-line operation scenarios.

This series of hot bar soldering platforms features a dual-soldering module design, enabling  the entire machine to achieve motion control in the directions of X, Y, Z axes with high motion accuracy via servo motors and precision lead screws. Simultaneously, it relies on a power control system to ensure high soldering stability. It can solder wide-area PCBs in a single operation and can solder multiple products simultaneously, thereby achieving higher soldering efficiency.
