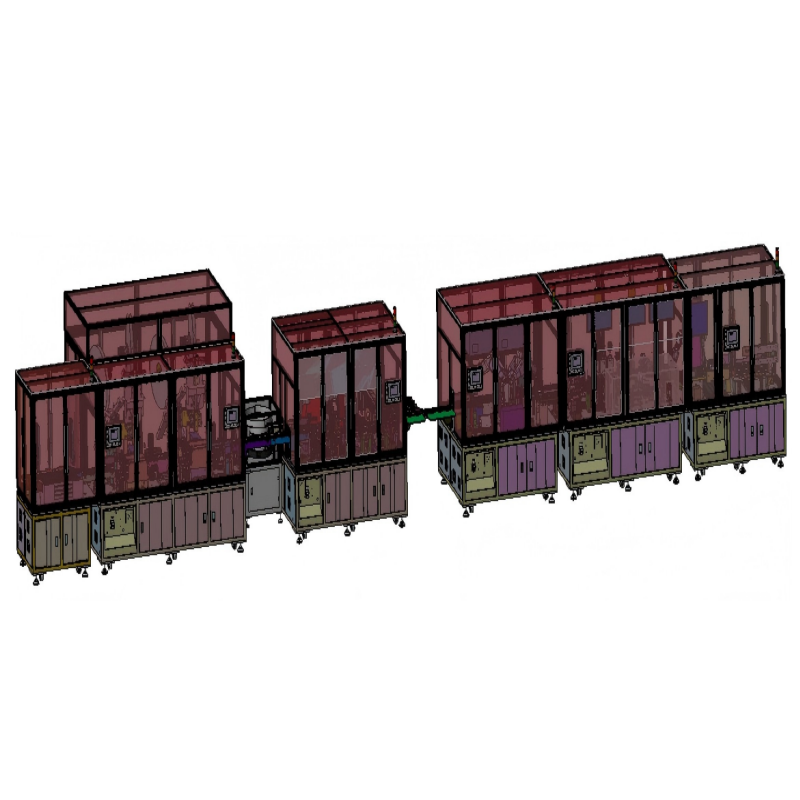

Fully Automatic High-Speed Backplane Connector Assembly Line with Inspection System
Integrating a cam-driven pin insertion system and a high-precision connector inspection system, this automatic connector assembly line is specifically engineered for high-performance backplane connectors in the field of communications. The high-speed cam-driven pin insertion technology enables high-accuracy assembly, significantly shortening cycle times while reducing labor costs.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 13,550 × W 2,150 × H 2,400 mm
|
|
Cycle Time
|
≤ 3 s
|
|
UPH
|
1,020 pcs/h
|
|
Yield
|
≥ 99%
|
|
Utilization Rate
|
≥ 90%
|
Core Strengths
Flexible Manufacturing
The modular design enables flexible compatibility with a diverse range of product types; quick changeover within 30 minutes.
Quality Assurance
Precision assembly combined with high-precision vision inspection effectively ensures product quality.
Easy O&M
Intuitive, user-friendly interface reduces operational difficulty and training requirements for operators.
Applications
Industry Focus: Widely applied in communications, data centers, automotive electronics, and other related fields.
Target Products: Tailor-made for the assembly of high-speed connectors used in core switches, servers, and base station equipment.
Line Compatibility: Supports fully automatic production mode and modular quick changeover.
