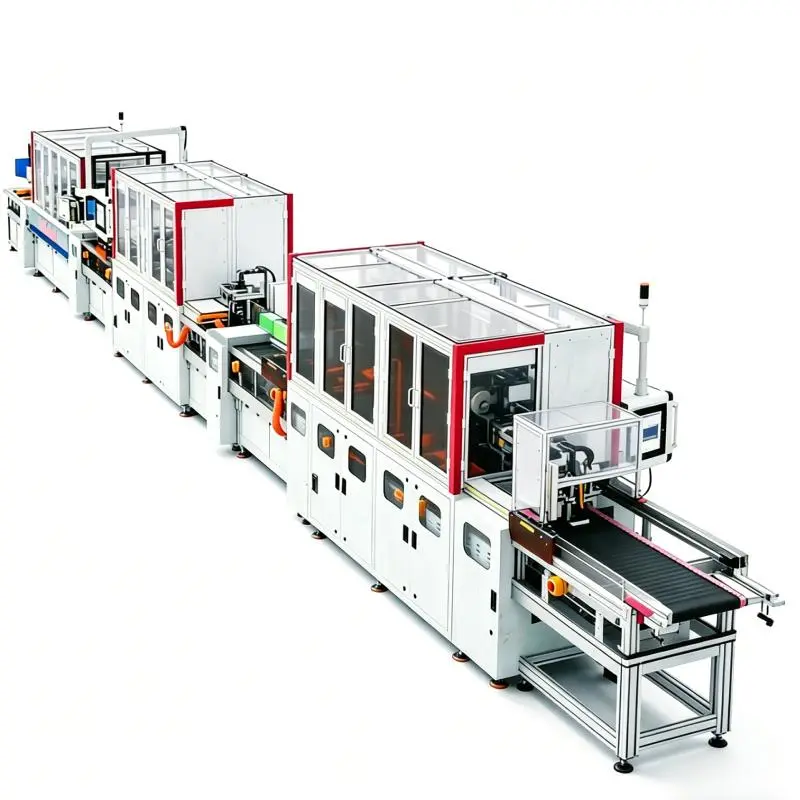

Fully Automatic NearStack Connector Assembly Line with Inspection System
This is an integrated, full-process intelligent production line specifically engineered for high-speed connector manufacturing, focusing on NearStack series connectors and cable assemblies. It achieves high-speed and high-precision production across key processes including Wafer assembly, wire preparing, laser welding, shielding plate assembly, automated unloading, serving as a core cable assembly automation equipment for AI servers, data centers, and high-speed communication equipment, and other related fields.
Product Specifications
Item |
Parameter |
| Dimensions | L 10000 × W 1200 × H 1900 mm |
| Equipment Power | ≤ 50 kW |
| Operating Voltage | AC 380 V±10%, 50/60 Hz, 3-phase 5-wire |
| Air Supply Pressure | 0.5-0.7 MPa |
| CT | < 13 s |
| OEE | 85% |
| Yield | > 99% |
| Control Method | PLC + IPC (Industrial Personal Computer) + vision positioning system |
| Safety Protection | Safety doors, emergency stop, light curtains, safety interlocks |
| Communication Interfaces | EtherCAT/PROFINET/Ethernet |
Core Strengths
High-Precision Dual-Station Assembly
This line can simultaneously complete the assembly of two sets of Wafers in a single operation with a positioning accuracy of ±0.005 mm, meeting ultra-precision assembly requirements.
Exceptional First Pass Yield
The first pass yield for threading wires to the housing exceeds 99.8%, significantly reducing repetitive operation and material waste while ensuring smooth line operation.
Efficient Standardized Architecture
With a cycle time of less than 16 seconds, it employs a standardized modular design for easy maintenance and rapid scalability, enhancing overall production efficiency.
Application Scenarios
Industry Focus: Widely applied in core routers, cellular towers, and Ethernet infrastructure, and other related fields.

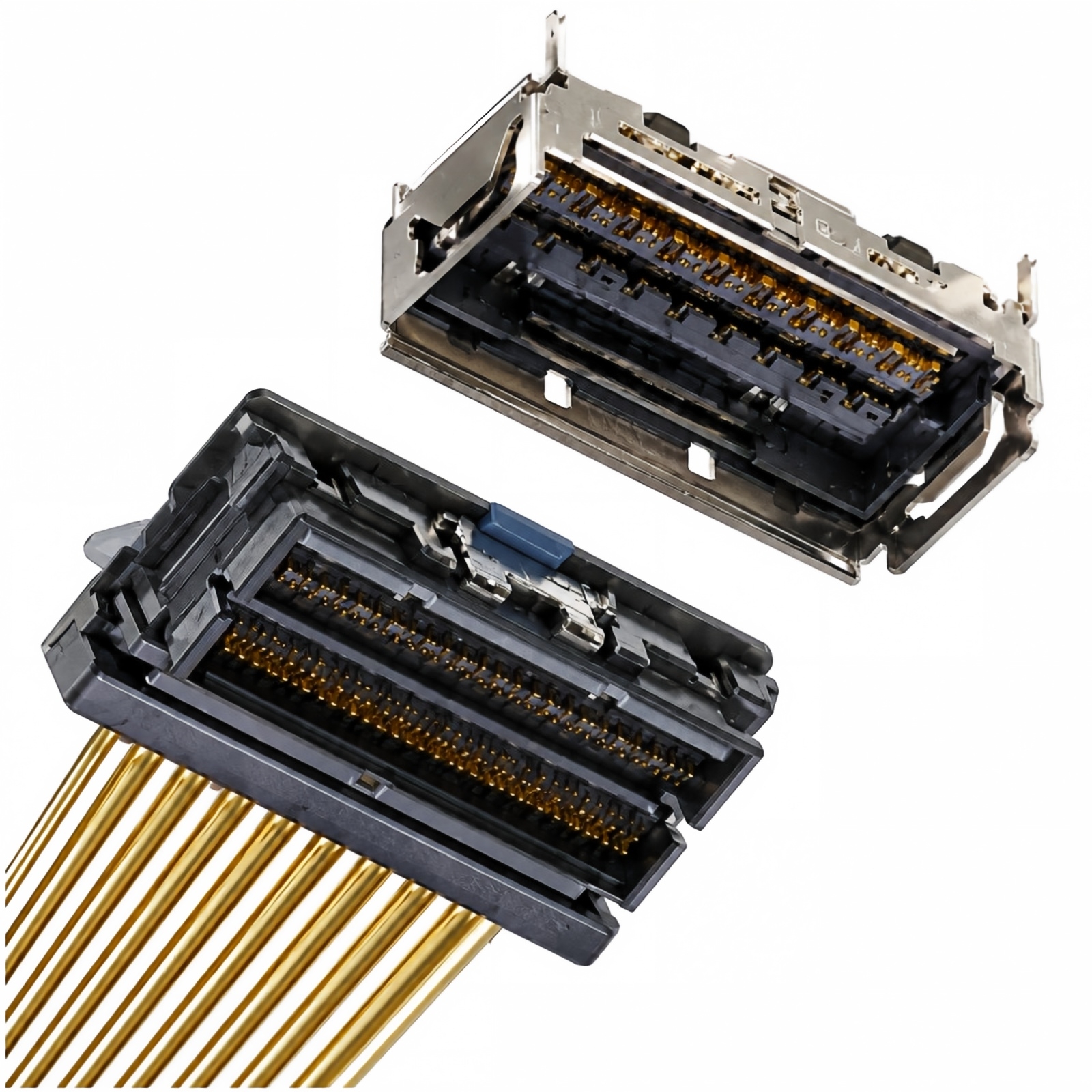

Applicable Products: Tailor-made for the automated production of NearStack 100 Ω high-speed connectors and cable assemblies.
Line Compatibility: Supports semi-auto/fully-auto production modes, and standalone operation/full-line integration.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
Related Product Recommendations
1.2 m/0.8 m Standardized Platform
Definition of Standardized Platform
This highly adaptable cable automation platform establishes a new benchmark for manufacturing through five pillars of standardization:
1. Equipment Dimensions Standardization (L×W×H): 1.2 m*1.2 m*1.9 m/0.8 m*1.2 m*1.9 m.
2. Electrical Control System Platformization: With unified PLC/IPC platform, standard I/O interfaces and communication protocols, modules are plug-and-play, and program recipes can be recalled with a single click, significantly reducing debugging time.
3. Mechanical Interface Platformization: All functional modules (pay-off, lacing, soldering, etc.) adopt unified mechanical interfaces and quick-change mechanisms for rapid mounting, dismounting, and function switching.
4. Process Platformization: Covers the complete process chain including aluminum foil stripping, insulation remove, soldering, and glue dispensing. Modules can be flexibly combined to match diverse product process requirements.
5. Safety Protection Standardization: Adopts unified physical guarding standards along with certified, compliant safety electrical components.

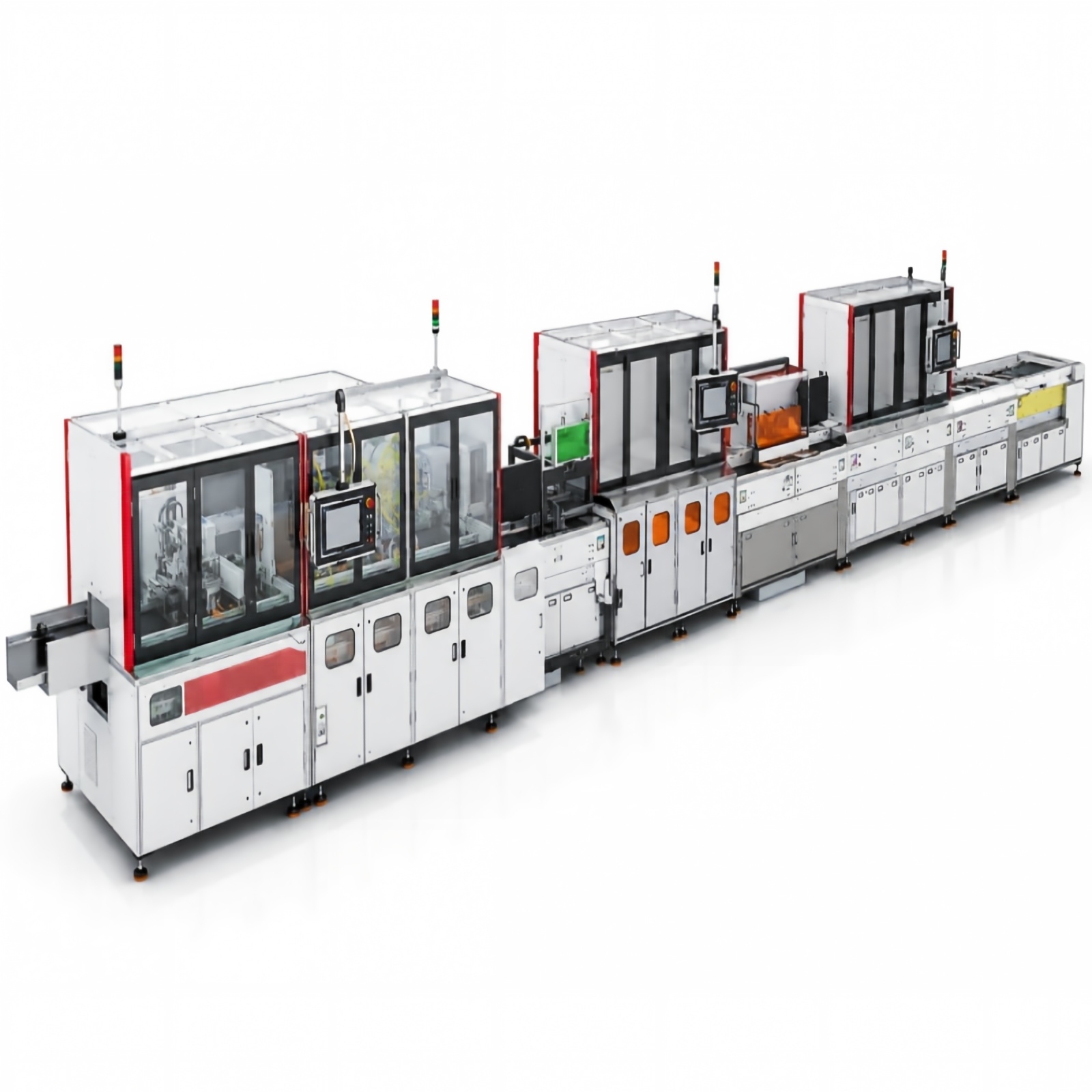

Fully Automatic CDFP High-Speed Cable Assembly Line
This state-of-the-art production line seamlessly integrates multiple stations, including automatic wire feeding & cross-wiring, UV laser aluminum foil stripping & swinging, aluminum foil remove, CO2 laser insulation stripping, insulation remove, pre-forming & final-trimming, Hot Bar soldering, an automatic clamp & fixture reflow system, and full MES integration.
Engineered for next-generation CDFP cable automation, this line utilizes high-precision servo systems and vision guidance to guarantee absolute assembly stability, significantly eliminating redundant operator movements while achieving true data-driven production.
Fully Automatic Izumi High-Speed Cable Assembly & Soldering Line
This modular, flexible automated line seamlessly integrates all processes – wire pay-off, lacing, aluminum foil stripping & remove, insulation stripping & remove, wire forming & trimming, soldering, and UV glue dispensing & curing. It is specifically engineered as a state-of-the-art automatic wire harness assembly line for the end-to-end processing of shielded/aluminum foil wire harnesses, coaxial cables, electronic lead wires, and ribbon cable assemblies.
Through a standardized platform and modular architecture, the line enables rapid changeovers, flexible manufacturing, and high equipment reuse rates—significantly boosting productivity, reducing labor dependency, and effectively conquering high-mix, low-volume market challenges.
