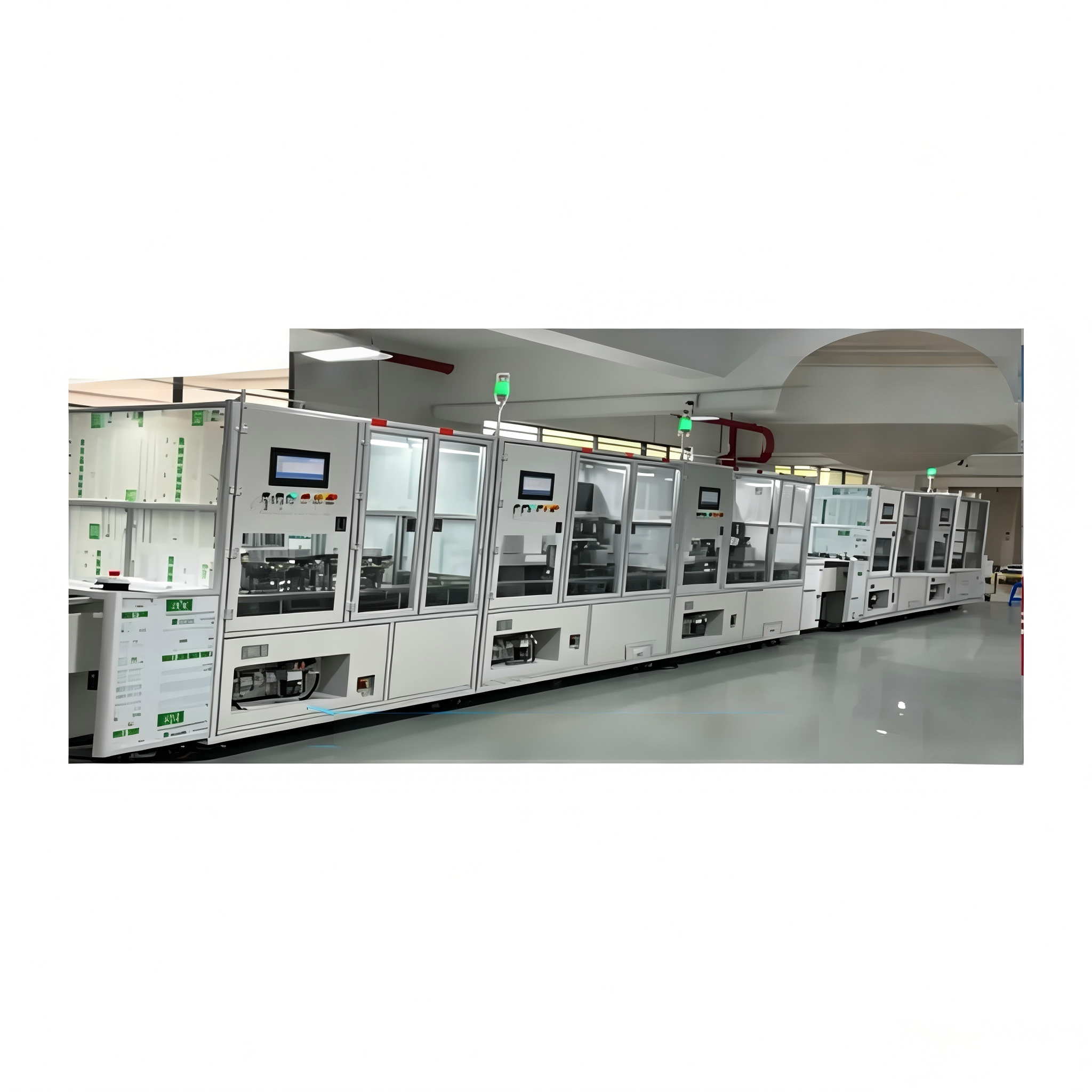

CDFP Wire Preparing Automated Line

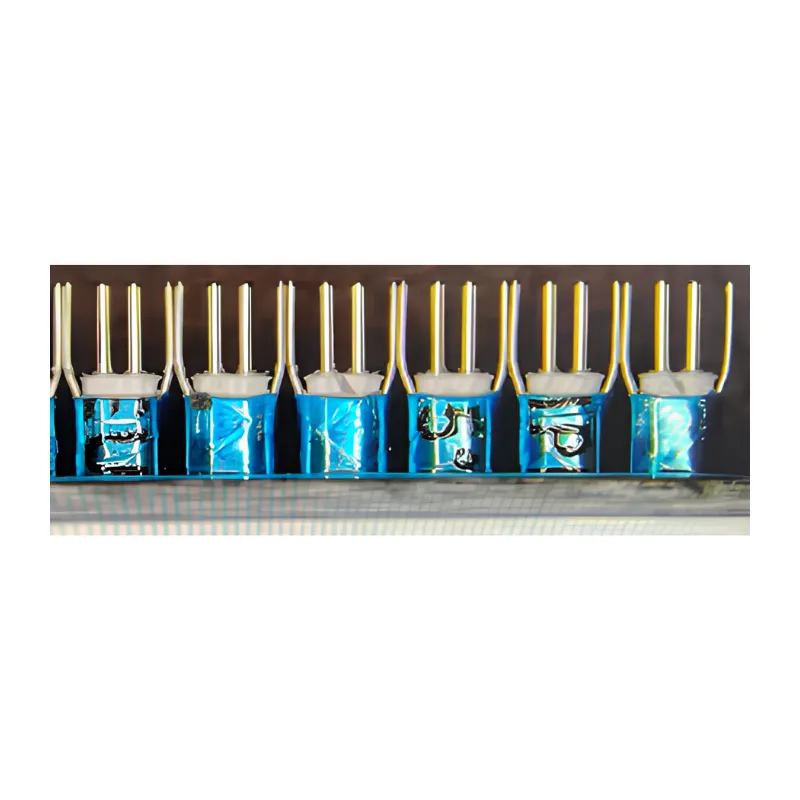

This line integrates multiple stations including manual loading table, lifter, UV laser stripping, aluminum foil swing, aluminum foil remove, CO2 laser stripping, dielectric remove, conductor pre-forming, conductor final-trimming, and automatic soldering, enabling automated wire preparing and soldering of high-speed cables.
Product Specifications
| Items | Parameter |
| Rated voltage | AC220V 50Hz |
| Equipment power | 15.4 kW 70A |
| Air supply pressure | 0.5-0.7 MPa |
| Material transfer | Runner-type transfer |
| Fixture reflow | Runner reflow |
| Standard parts | Customer-specified brands |
| UV laser machine | Dual lasers, power 5 W, galvanometer, water-cooled, industrial dust collector |
| CO2 laser machine | Dual lasers, power 30 W, galvanometer, water-cooled, industrial dust collector |
| Dimensions | L 18350 × W 1500 × H 1950 mm |
Product Features
Highly Integrated Production Line for Cost Reduction & Efficiency Improvement
Featuring an integrated station design, this line is capable of completing the full process of wire preparing at a single operation, significantly streamlining staffing levels and boosting production efficiency.
Full Production Process Visibility
Equipped with a video monitoring system, it supports real-time on-site visualization and remote monitoring, effectively enhancing production status management.
Automated Production Data Traceability
It simultaneously records and traces complete production information for quality tracking and process verification, providing data support for quality control and process optimization.
Open Interconnectivity for System Scalability
It reserves standard data interfaces for flexible docking with MES systems or self-developed Web platforms, laying a foundation for digital intelligent manufacturing.
