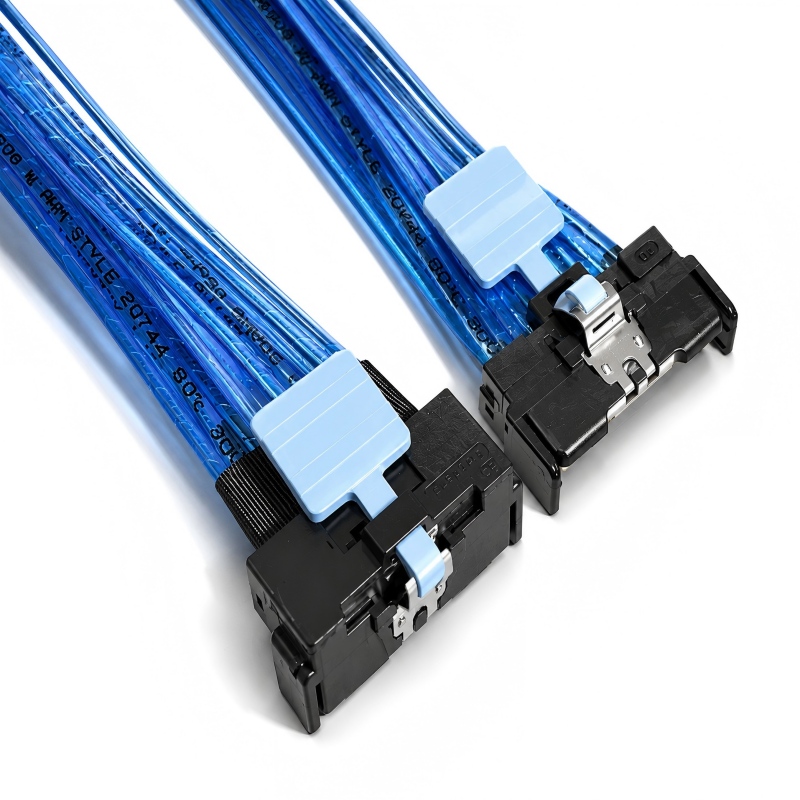

MCIO Wire Preparing Automated Line
This line integrates multiple stations including manual loading table, lifter, UV laser stripping, aluminum foil swing, aluminum foil remove, CO2 laser stripping, dielectric remove, conductor pre-forming, and conductor final-trimming, enabling automated wire preparing of high-speed cables.
Product Specifications
| Items | Parameter |
| Rated voltage | AC220V 50Hz |
| Equipment power | 15.4 kW 70A |
| Air supply pressure | 0.5-0.7 MPa |
| Material transfer | Runner-type transfer |
| Standard parts | Customer-specified brands |
| UV laser machine | Dual lasers, power 5 W, galvanometer, water-cooled, industrial dust collector |
| CO2 laser machine | Dual lasers, power 30 W, galvanometer, water-cooled, industrial dust collector |
| Dimensions | L 16000 × W 1500 × H 1950 mm |
Product Features
Fully Integrated Process for Efficient Production
Featuring an integrated station design, this line is capable of completing the full process of wire preparing at a single operation, significantly streamlining staffing levels and boosting production efficiency.
High-Capacity Design with Scalable Potential
It delivers an output of up to 1000 pcs/shift while reserving upgrade space for expanding capacity to 2000 pcs/shift.
Full-Process Visualization
It also integrates a video monitoring system for real-time visualization of production sites and remote monitoring , enhancing process control capabilities.
Automated Data Traceability
It automatically records complete production data for quality tracking and process verification, providing a basis for quality improvement.
Open Interconnectivity for Readiness of Intelligent Manufacturing
It is equipped with standard data interfaces for docking with MES systems or self-developed Web platforms, laying a foundation for digital upgrade.
