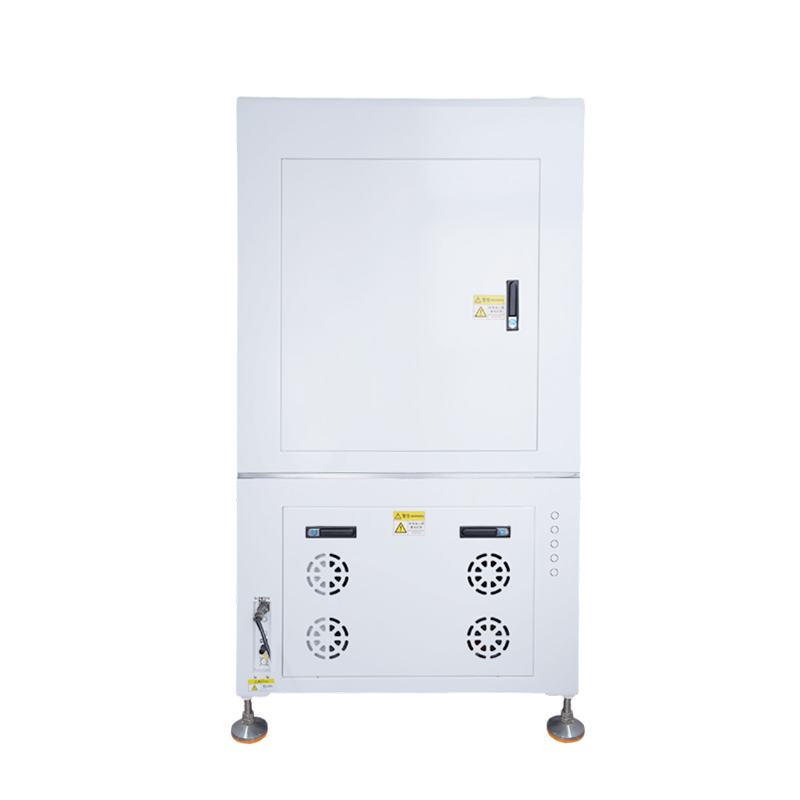

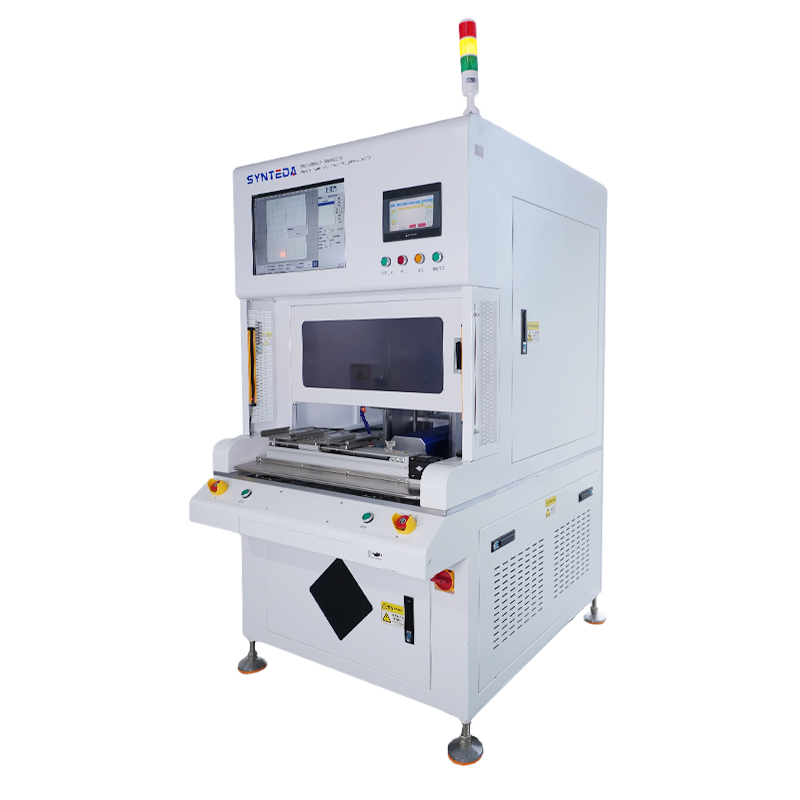

CO2 Laser Stripping Machine
This type of CO2 laser machine is widely used in the high-speed cable industry for dielectric cutting, achieving cutting results with high precision and high repeatability. It is also suitable for stripping high-speed cables, flat wires, HDMI cables, ribbon cables, and micro coaxial cables above AWG #30.
Application Areas: The CO2 laser stripping machine is primarily used for cutting non-metallic materials including polyvinyl chloride (PVC), fiberglass, polyesters, polyester films, fluorides, nylon, polyethylene, silicone resins, and other dielectrics with different hardness or high temperature.
Product Specifications
|
Items
|
Parameter
|
|---|---|
|
Rated voltage
|
AC220V 50Hz
|
|
Equipment power
|
<1.5 kW
|
|
Laser rated power
|
30 W/50 W (other options available based on customer requirements)
|
|
Laser wavelength
|
10.6 um, 9.3 um
|
|
Cooling method
|
Water-cooling
|
|
Stripping path implementation
|
Optical path + Galvanometer
|
|
Q-switching frequency
|
1 kHz-1000 kHz
|
|
Cutting range
|
Standard 100 × 100 mm (customizable based on customer needs requirements)
|
|
Dimensions
|
L 1100 x W 720 x H 1680 mm
|
Product Features
High-Performance Laser Source
This equipment utilizes a premium laser with stable output power, rapid response, and superior beam quality, ensuring consistent processing results.
Efficient Water-Cooling System
By incorporating an integrated water-cooling system for efficient heat dissipation, it achieves long-term stable operation with reduced maintenance needs and effectively lower operational costs.
Motor-Driven Precise Focusing
Motor-driven auto-focusing function enables rapid and precise locking of the focal point, preventing manual debugging errors, and significantly enhancing the accuracy and stability of the stripping process.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
