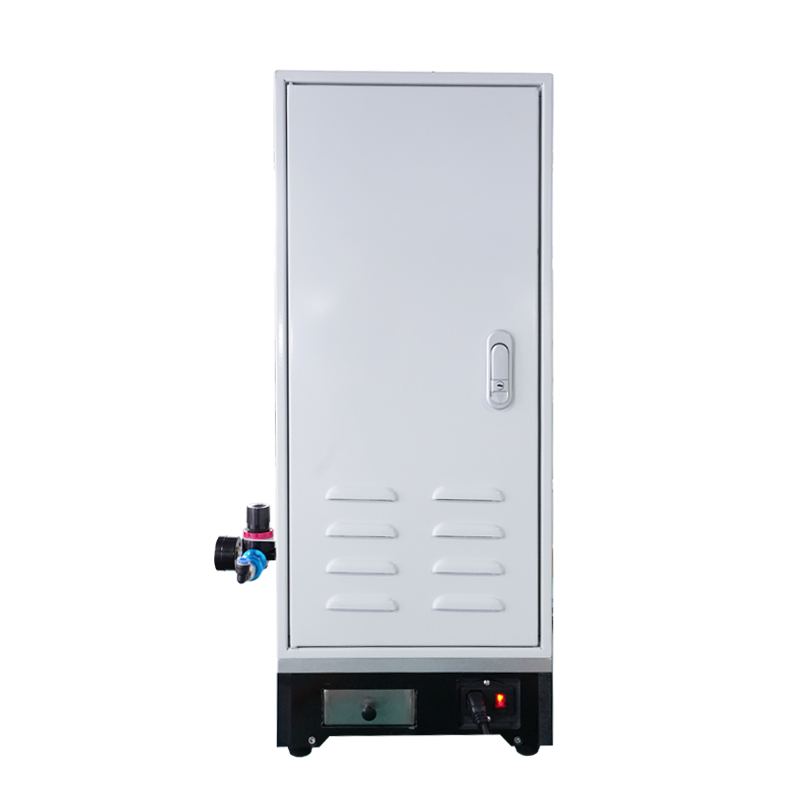

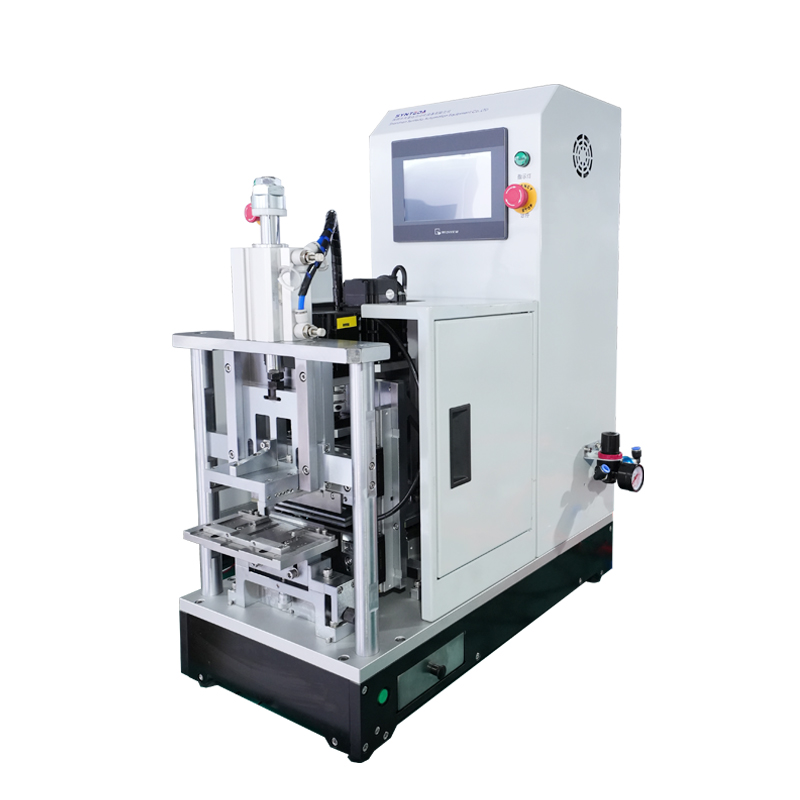

Desktop Foil / Dielectric Remove Machine
This equipment employs features a mechanical structure design that simulates manual foil swinging and plucking motions. It automatically removes the surface aluminum foil or dielectric after the swing process, precisely replacing manual auxiliary processes to achieve automation in aluminum foil and dielectric handling.
Product Specifications
|
Items
|
Parameter
|
|
Rated voltage
|
AC220V 50Hz
|
|
Equipment power
|
<1.5 kW
|
|
Air supply pressure
|
0.5-0.7 MPa
|
|
Cycle time (CT)
|
≤6s
|
|
Applicable product width
|
<90 mm
|
|
Remove distance
|
<10 mm
|
|
Dimensions
|
L 550 x W 450 x H 500 mm
|
Product Features
Intelligent Swing Function
This equipment supports on-demand activation/deactivation of the swing mode. This function enhances stripping stability and control precision during aluminum foil remove, effectively improves the consistency of processing results.
Human-Machine Collaboration for Optimization
It is designed to be capable of working in tandem with manual operation, significantly addressing poor consistency of wire condition during pure manual operations, and ensuring the removed wire form meets process specifications.
