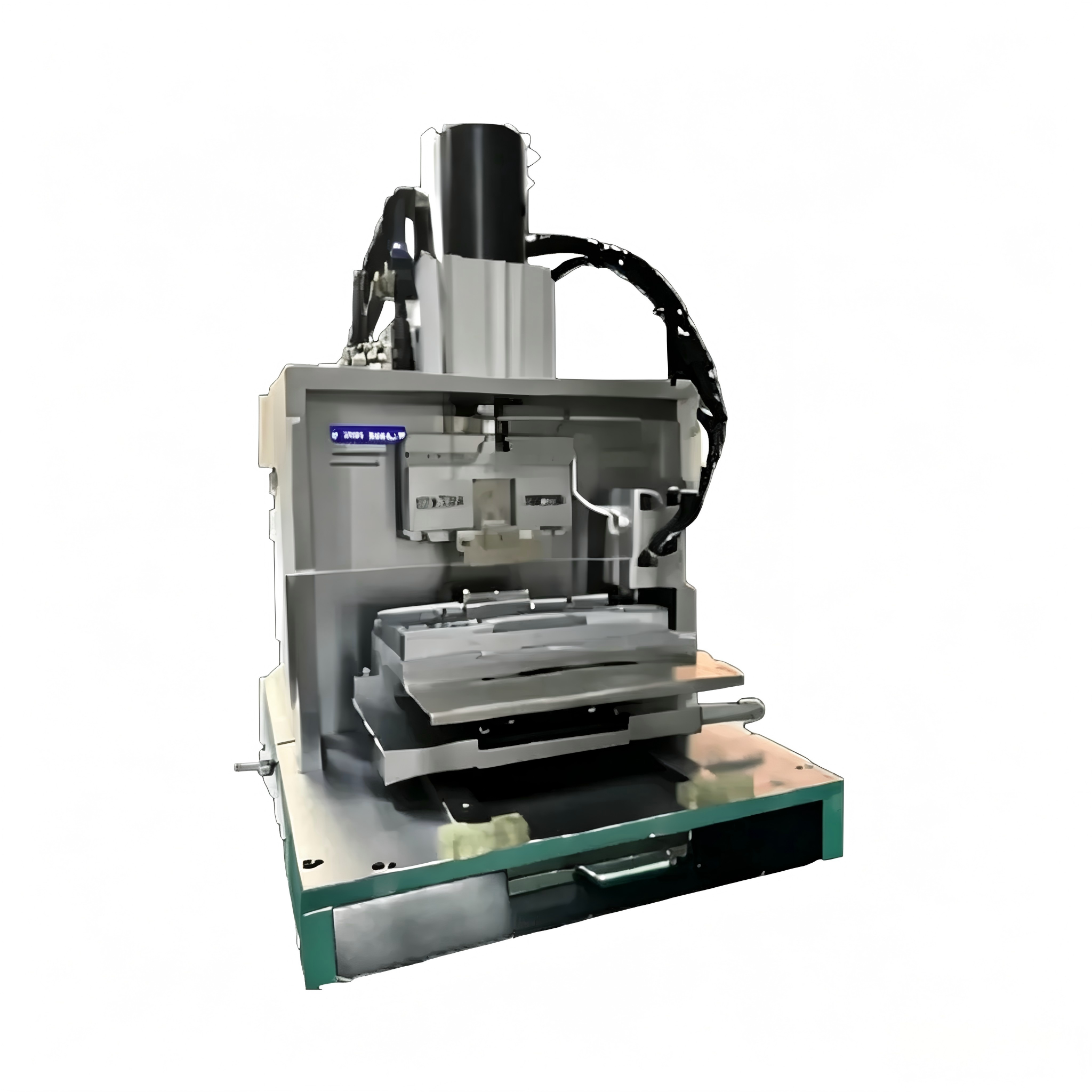

Desktop Forming & Trimming Machine

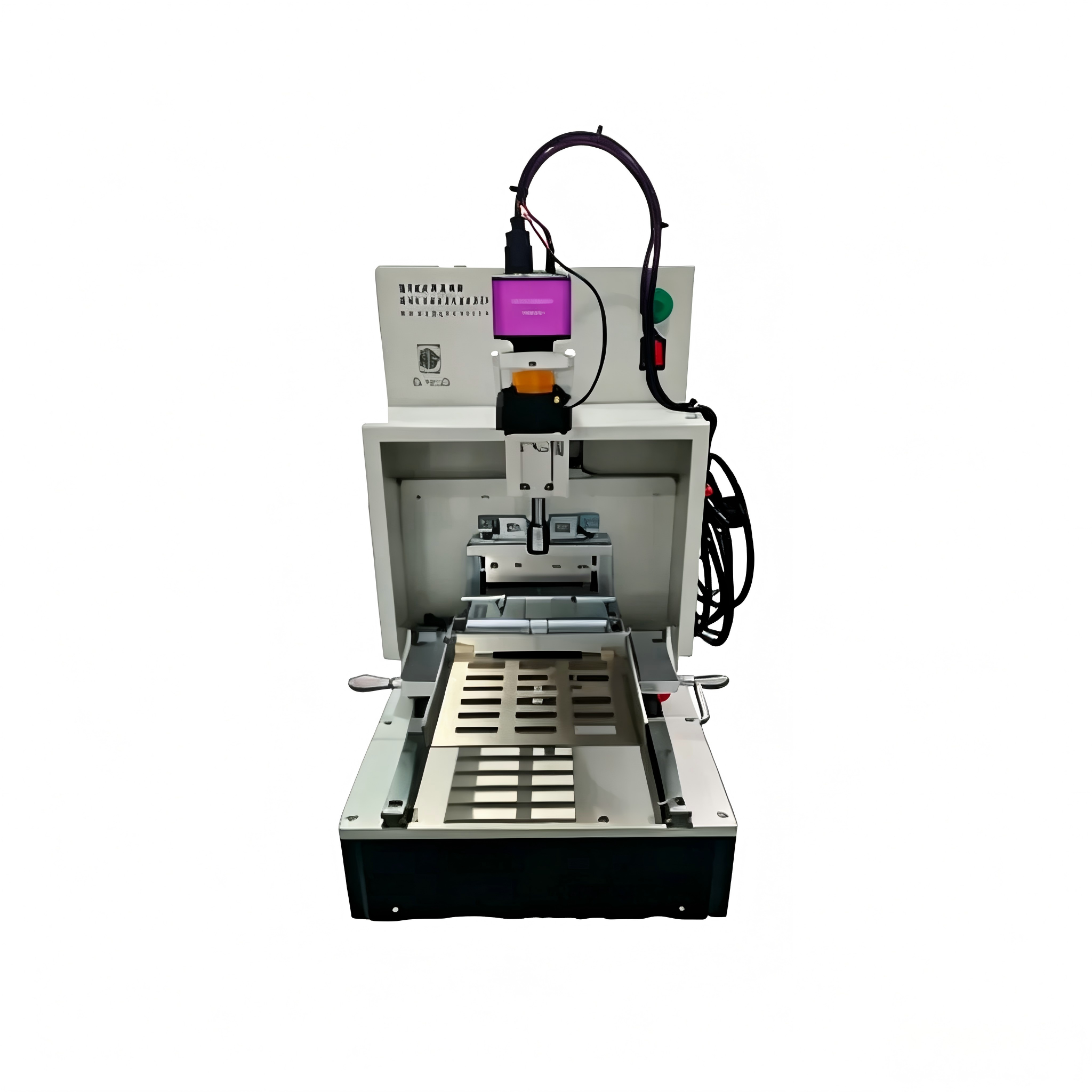

This series of Hot Bar soldering platforms is a single-pass multi-pin automatic soldering machine compatible with multiple functions including CCD for magnified display and automatic solder wire feeder. The equipment is easy to operate and requires no specialized training—operators only need to place the workpiece on the soldering platform and press the start button to complete the soldering process. Its process principle involves rapid heating and cooling of solder joints under pressure, effectively preventing defects including solder floating and pseudo soldering. By integrating functions of closed-loop temperature feedback control and real-time pressure monitoring, the system enables high-precision control of soldering parameters, thereby ensuring excellent process repeatability and consistent high-quality production.
This equipment is suitable for single-sided processing of a single workpiece, soldering all solder joints on one side in a single operation.
Product Specifications
|
Items
|
Parameter
|
|---|---|
|
Rated voltage
|
AC220V 50Hz
|
|
Rated power
|
1.5 kVA/3.0 kVA
|
|
Air supply pressure
|
0.5-0.7 MPa
|
|
Cooling method
|
Passive cooling + Active Cooling
|
|
Regulation modes
|
Closed-loop temperature feedback control system, pressure-sensing monitoring & feedback system
|
|
Thermode height adjustment
|
0-80 mm
|
|
Thermode stroke
|
Fixed
|
|
Soldering station entry/exit method
|
Manual/Auto
|
|
Soldering station dimensions
|
90x90 mm, customizable
|
|
Net weight
|
30 kg + 20 kg
|
|
Optional accessories
|
CCD monitor/Solder wire feeder
|
|
Dimensions
|
Power supply: L 420 × W 210 × H 335 mmPlatform: L 430 × W 250 × H 500 mm
|
Product Features
Self-Developed Core System
This equipment utilizes self-developed software and a microcontroller-based control system. With mature technology and stable operation, its performance has been widely validated in the market.
High-Precision Transmission & Positioning
Driven by a servo motor coupled with a linear lead screw module, the thermode module is stable and reliable. Its repeatability and long-term stability also surpass those of industry counterparts, guaranteeing highly consistent soldering results.
Compact Structure for Easy Integration
The compact unit allows its flexible adaptation to automated production lines or acting as a standalone workstation, enabling convenient deployment.
