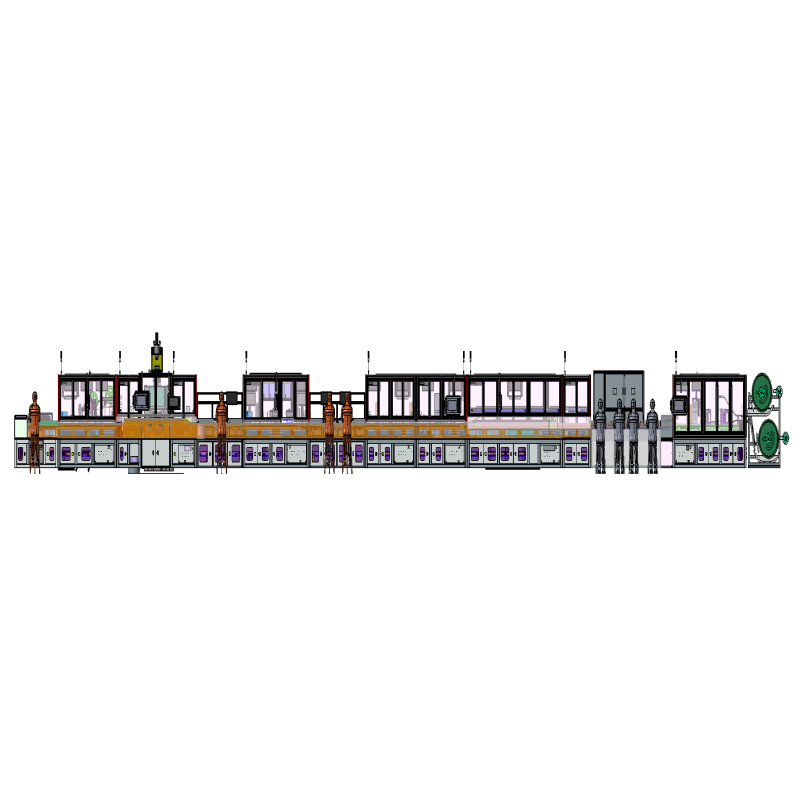

Fully Automatic High-Speed Backplane Connector Assembly Line
Integrating key processes including Wafer assembly, wire preparing, resistance welding, shielding plate assembly, and high-pressure molding, this automatic line is specifically engineered for the high-speed interconnect assembly requirements in the fields of AI servers and data centers, and other related fields, fulfilling the demand for large-scale, intelligent mass production of high-performance communication connectors.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 28,000 x W 1,200 x H 2,000 mm
|
|
CT
|
≤ 15 s
|
|
OEE
|
85%
|
|
Yield
|
99%
|
|
Equipment Power
|
≤ 50 kW
|
|
Operating Voltage
|
AC 380 V±10%, 50/60 Hz, 3-phase 5-wire
|
|
Operating Air Pressure
|
0.5–0.7 MPa
|
|
Control Method
|
PLC + IPC (Industrial Personal Computer) + vision positioning system
|
|
Safety Protection
|
Safety doors, emergency stop, light curtains, and safety interlocks
|
|
Communication Interfaces
|
EtherCAT/PROFINET/Ethernet
|
Core Strengths
Precision Assembly
Utilizes dual-positioning system via pallet and vision (pallet accuracy: ±0.01 mm; vision-guided assembly accuracy: ±0.02 mm), ensuring high precision and consistency.
Full-Process Quality Control
Incorporates full-process vision monitoring and real-time inspection systems, strictly controlling every stage of manufacturing with pinpoint accuracy.
Flexible Manufacturing
Key stations feature a modular quick-change design, enabling quick changeover within 5 minutes and an equipment reuse rate of up to 80%; simple operation and low training costs.
Applications
Industry Focus: Applied in AI high-speed wire harness manufacturing, high-speed backplane interconnects, and high-speed signal connections for data centers, and other related fields.

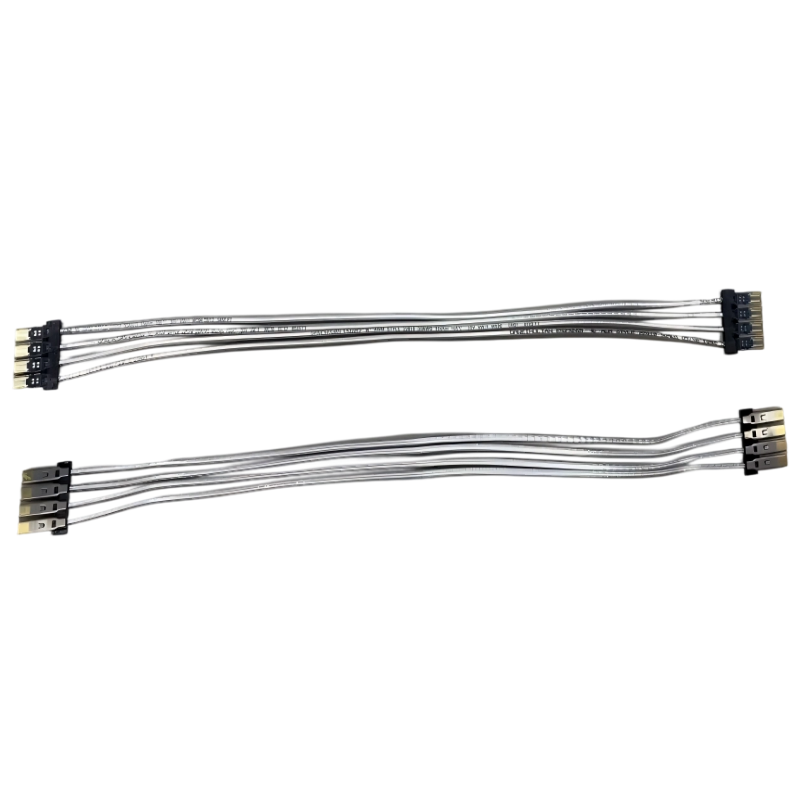

Target Products: Tailor-made for the automated production of next-generation high-speed backplane connectors.
Line Compatibility: Supports semi-auto/fully-auto production modes, standalone operation/full-line integration, and seamless connection with downstream inspection equipment.
