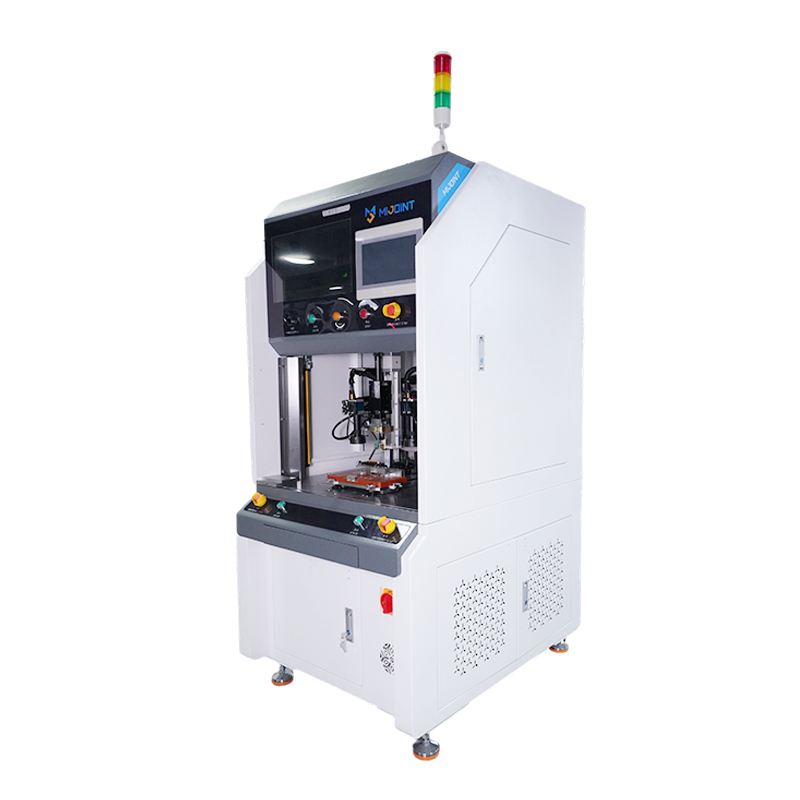

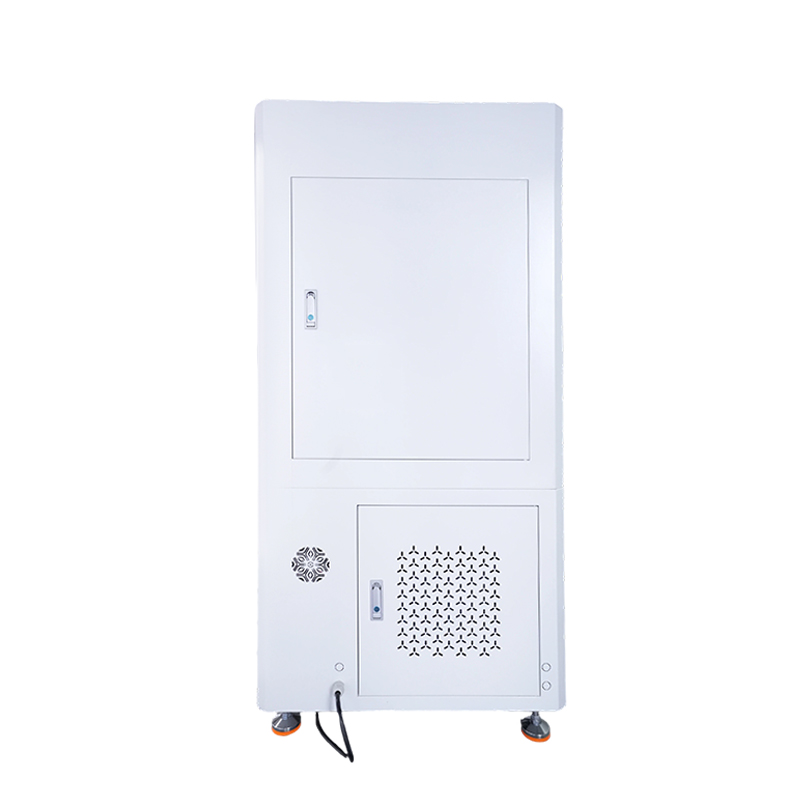

Single-Station Resistance Welding Machine
This electronic spot welder integrates advanced pressure sensing and electronic control systems, enabling precise control of output voltage, welding duration, and welding pressure. It also features a built-in current sensor monitoring the welding quality of each welding joint in real time. The equipment is suitable for welding enameled wires or metal wires with diameters ranging from 0.02 mm to 0.30 mm. It can directly weld enameled wires, metal wires, metal strips, metal sheets, solar cells, etc. It is now widely applied in the mass production of micro components such as chip inductors, surface mount transformers, miniature buzzers, high-frequency communication components, inductive IC cards, watch coils, and modules.
Product Specifications
|
Items
|
Parameter
|
|---|---|
|
Maximum output pulse power
|
540 VA
|
|
Welding pulse width
|
0-29.9 ms (resolution 0.1 ms)
|
|
Control mode
|
Manual/Auto
|
|
Welding station dimensions
|
90 x 90 mm
|
|
Main pulse amplitude
|
0.01-1.99 V (resolution 0.01 V)
|
|
Power supply
|
AC220V
|
|
Heating method
|
Pulse heating
|
|
Weldable wire diameter
|
∅ 0.02-0.3 mm
|
|
Dimensions
|
L 620 × W 600 × H 1600 mm (excluding monitor)
|
Product Features
Flexible Deployment & High Compatibility
This equipment features a floor-type standalone design, enabling standalone operation or rapid integration into automated production lines with standard modules to meet diverse manufacturing scenarios.
Precise Control & Stable Output
It is equipped with high-precision welding energy regulation function to ensure stable and consistent energy output, guaranteeing welding quality from the source.
Superior Welding Joints & Reliable Performance
Fine welding joints as well as excellent conductivity, low signal diminution, and a precisely positioned and durable thermode design comprehensively enhances process reliability and product lifespan.
