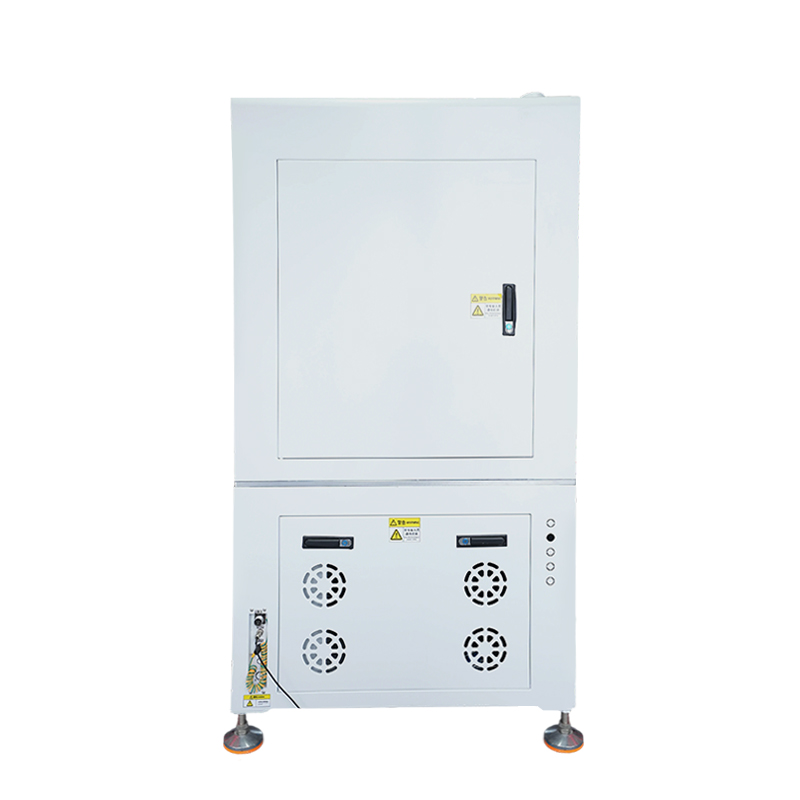

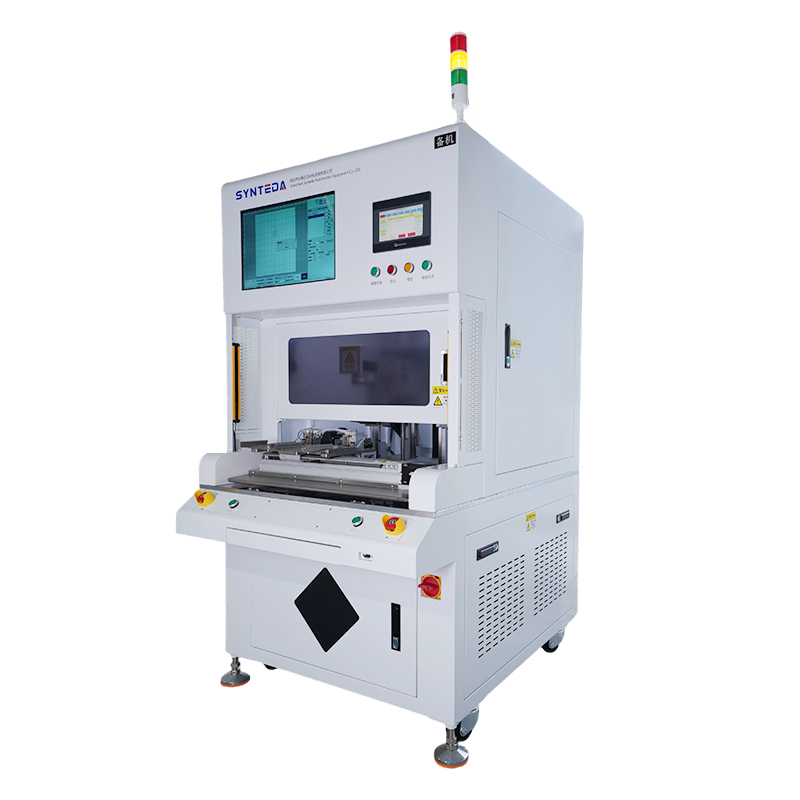

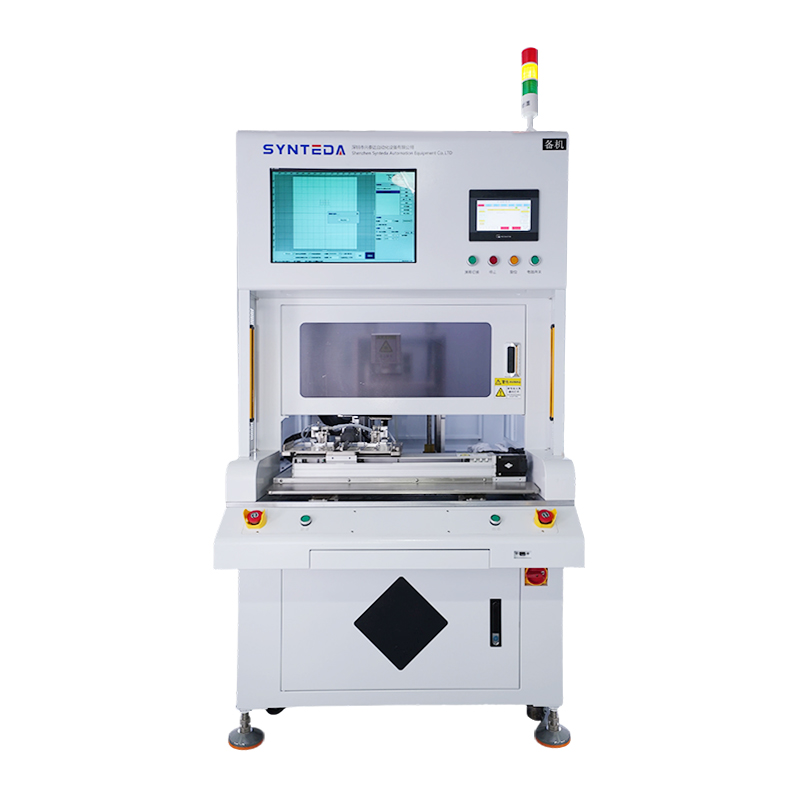

UV Laser Stripping Machine

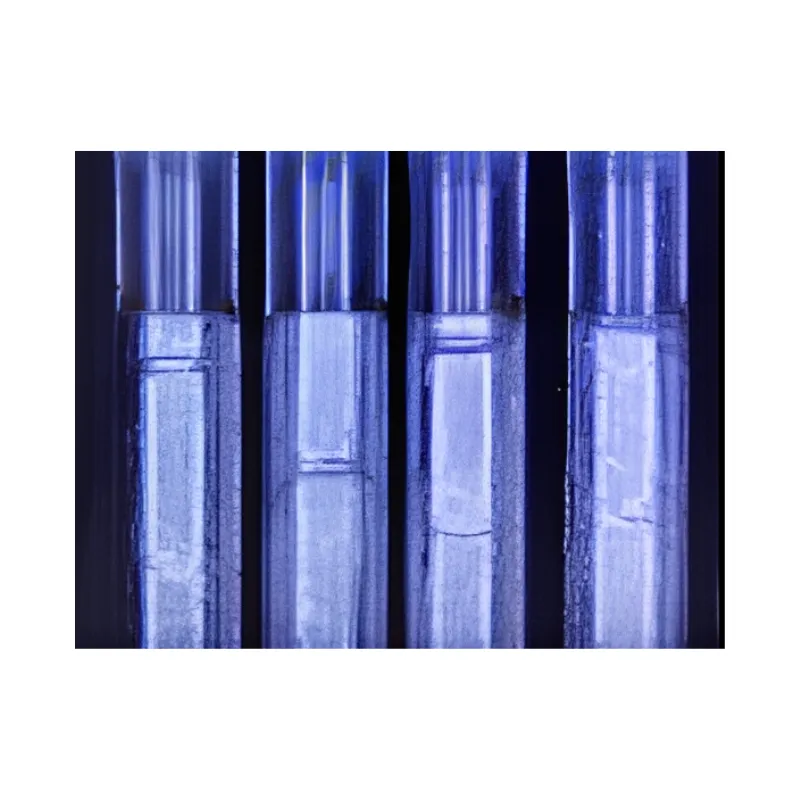

This equipment features an integrated UV laser system with an imported laser, delivering stable output and excellent beam quality. It boasts a long service life and low maintenance requirements. The compact structure, stable operation, and high precision design ensures safety and reliability during prolonged continuous operation, perfectly meeting high-precision processing demands such as aluminum foil stripping.
Product Specifications
|
Items
|
Parameter
|
|
Rated voltage
|
AC220V 50Hz
|
|
Equipment power
|
<1.5 kW
|
|
Laser rated power
|
5 W/10 W (other options available based on customer requirements)
|
|
Laser wavelength
|
355 nm (ultraviolet)
|
|
Cooling method
|
Air cooling/Water-cooling
|
|
Stripping path implementation
|
Optical path + Galvanometer
|
|
Q-switched frequency
|
1 kHz-1000 kHz
|
|
Cutting range
|
Standard 100 × 100 mm (customizable based on customer needs requirements)
|
|
Dimensions
|
L1100 x W720 x H1680mm
|
Product Features
High-Performance UV Laser System
This equipment utilizes a high-end UV laser characterized by fast emission, superior beam quality, and stable output power, ensuring highly consistent processing results.
Efficient Water-Cooling & Little-Maintenance Design
It integrates water-cooling system to guarantee long-term stable operation, effectively reducing after-sales maintenance costs.
Motor-Driven Precise Focusing Mechanism
Motor-driven auto-focusing function enables rapid and precise locking of the focal point, eliminating deviations and slide caused by manual debugging, and significantly enhancing the process stability of aluminum foil stripping.
