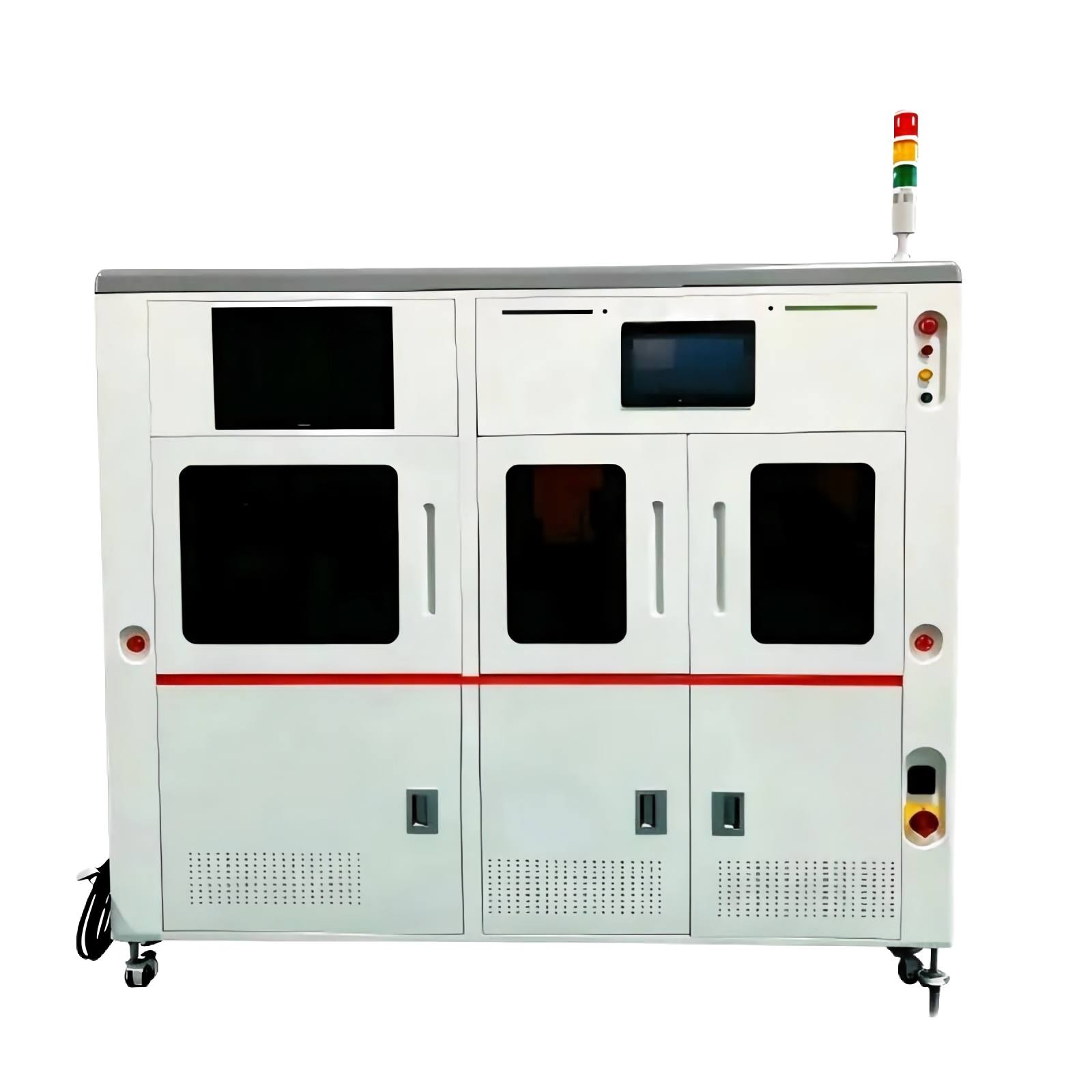

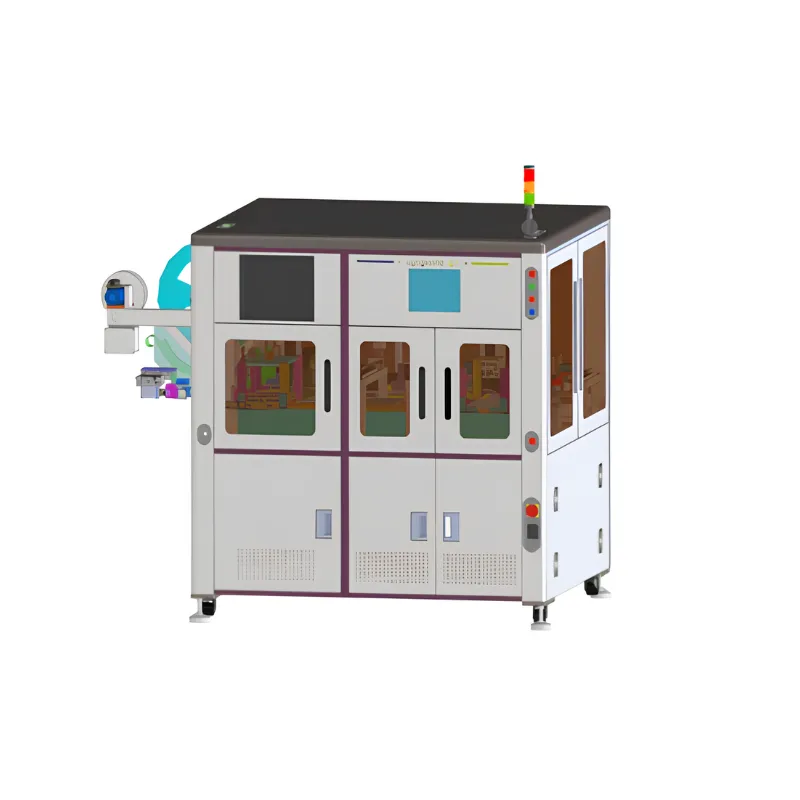

Fully Automatic Clip Pin Insertion & Packaging Machine
Designed to eliminate the inefficiencies, high defect rates, and management challenges of traditional manual assembly, this high-performance automatic pin insertion machine driving productivity through full automation, vision-guided operation, and high-precision motion control.
Operational Process Flow:
Feeding & Positioning: The terminal insertion machine accepts tray-loaded products, executing automated component picking and secondary high-precision positioning.
Dual-Insertion Execution: One pin insertion module performs two insertions per product, delivering a rapid CT of just 3.5 s/piece.
Vision Guidance & Assembly: An integrated CCD vision system detects the exact alignment slots, guiding the servo module to insert the terminal pins with extreme accuracy.
Post-Processing: Following insertion, the finished components automatically undergo carrier tape folding, secondary pressing, and a final quality inspection.
Product Specifications
Item |
Parameter |
|
Rated Voltage
|
AC 220 V 50 Hz
|
|
Equipment Power
|
18 kW 81 A
|
|
Air Supply Pressure
|
0.5-0.7 MPa
|
|
Material Transfer
|
Servo motor-driven feeding
|
|
Standard Parts
|
Customer-specified brands
|
|
Dimensions
|
L2,200 × W1,400 × H1,850 mm
|
|
Equipment Accuracy
|
X-Axis Repeatability: ±0.01 mm Y-Axis Repeatability: ±0.01 mm Z-Axis Repeatability: ±0.01 mm Equipment Assembly Accuracy: ±0.01 mm |
|
Equipment CT
|
< 3.5 s/pcs
|
|
Utilization
|
> 90%
|
|
Yield
|
> 98%
|
Core Strengths
Vision-Guided High-Precision Terminal Insertion System
The equipment is equipped with AOI (Automated Optical Inspection) vision guidance system for terminal insertion, enhancing terminal insertion precision.
Automated Logistics Closed-Loop
Both infeed and outfeed utilize Tray loading & unloading systems, enabling automatic material loading and packaging.
