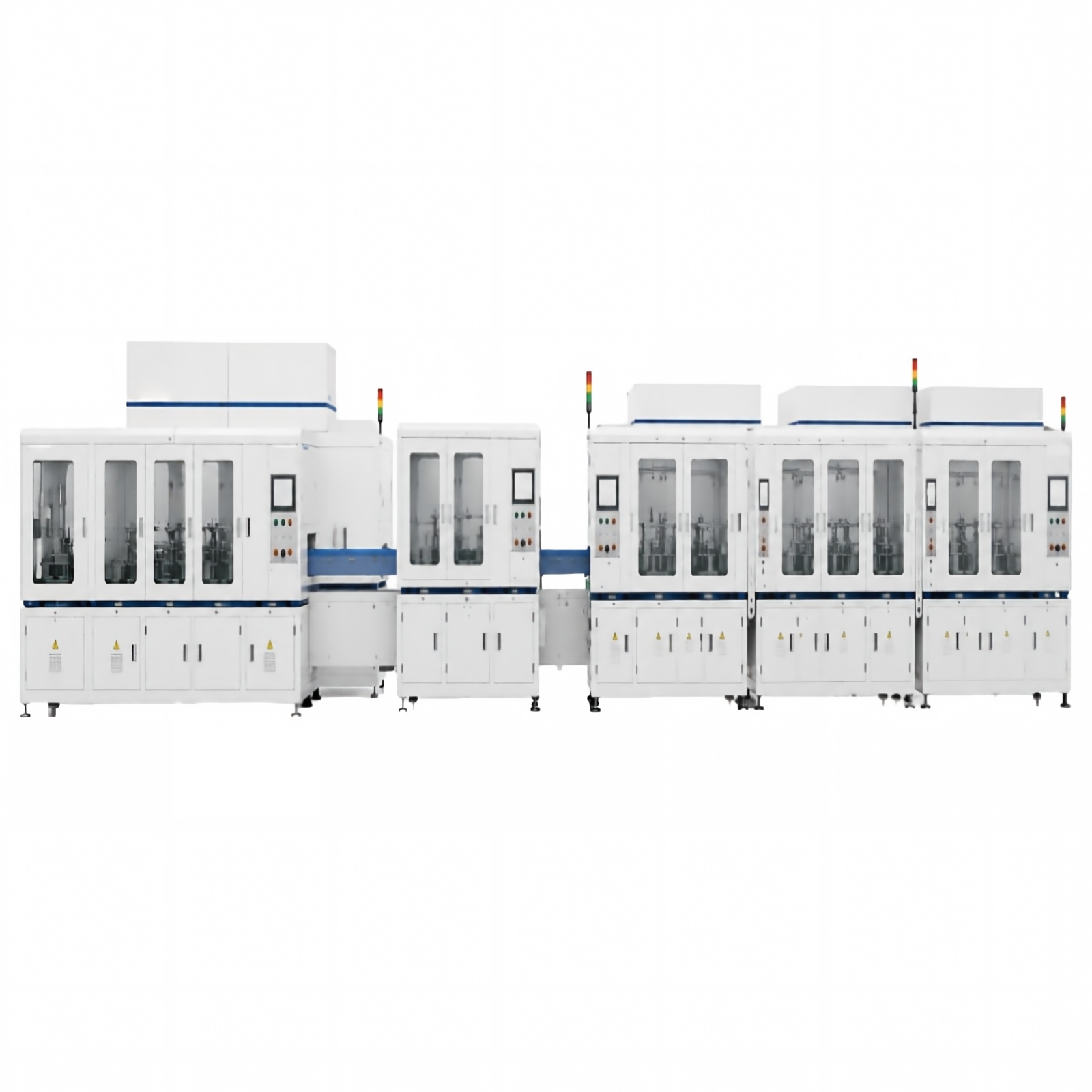

Fully Automatic ExaMAX2 High-Speed Backplane Connector Assembly Line with Inspection System
Integrating a cam-driven pin insertion system and a high-precision connector inspection system, this automatic backplane connector assembly line is specifically engineered for automatic connector assembly in the field of communications. The high-speed cam-driven pin insertion technology enables high-accuracy assembly, significantly shortening cycle times while reducing labor costs.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 13,550 × W 2,150 × H 2,400 mm
|
|
CT
|
≤ 3 s
|
|
UPH
|
1,020 pcs/h
|
|
Yield
|
≥ 99%
|
|
Utilization Rate
|
≥ 90%
|
Core Strengths
Flexible Manufacturing
The modular design enables flexible compatibility with a diverse range of product types; quick changeover within 30 minutes.
Quality Assurance
Precision assembly combined with high-precision vision inspection effectively ensures product quality.
Easy O&M
Intuitive, user-friendly interface reduces operational difficulty and training requirements for operators.
Applications
Industry Focus: Widely applied in communications, data centers, automotive electronics, and other related fields.
Target Products: Tailor-made for the assembly of high-speed connectors used in core switches, servers, and base station equipment.
Line Compatibility: Supports fully automatic production mode and modular quick changeover.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
Related Product Recommendations
1.2 m/0.8 m Standardized Platform
Definition of Standardized Platform
This highly adaptable cable automation platform establishes a new benchmark for manufacturing through five pillars of standardization:
1. Equipment Dimensions Standardization (L×W×H): 1.2 m*1.2 m*1.9 m/0.8 m*1.2 m*1.9 m.
2. Electrical Control System Platformization: With unified PLC/IPC platform, standard I/O interfaces and communication protocols, modules are plug-and-play, and program recipes can be recalled with a single click, significantly reducing debugging time.
3. Mechanical Interface Platformization: All functional modules (pay-off, lacing, soldering, etc.) adopt unified mechanical interfaces and quick-change mechanisms for rapid mounting, dismounting, and function switching.
4. Process Platformization: Covers the complete process chain including aluminum foil stripping, insulation remove, soldering, and glue dispensing. Modules can be flexibly combined to match diverse product process requirements.
5. Safety Protection Standardization: Adopts unified physical guarding standards along with certified, compliant safety electrical components.
Fully Automatic CDFP High-Speed Cable Assembly Line
This state-of-the-art production line seamlessly integrates multiple stations, including automatic wire feeding & cross-wiring, UV laser aluminum foil stripping & swinging, aluminum foil remove, CO2 laser insulation stripping, insulation remove, pre-forming & final-trimming, Hot Bar soldering, an automatic clamp & fixture reflow system, and full MES integration.
Engineered for next-generation CDFP cable automation, this line utilizes high-precision servo systems and vision guidance to guarantee absolute assembly stability, significantly eliminating redundant operator movements while achieving true data-driven production.
Fully Automatic Izumi High-Speed Cable Assembly & Soldering Line
This modular, flexible automated line seamlessly integrates all processes – wire pay-off, lacing, aluminum foil stripping & remove, insulation stripping & remove, wire forming & trimming, soldering, and UV glue dispensing & curing. It is specifically engineered as a state-of-the-art automatic wire harness assembly line for the end-to-end processing of shielded/aluminum foil wire harnesses, coaxial cables, electronic lead wires, and ribbon cable assemblies.
Through a standardized platform and modular architecture, the line enables rapid changeovers, flexible manufacturing, and high equipment reuse rates—significantly boosting productivity, reducing labor dependency, and effectively conquering high-mix, low-volume market challenges.
