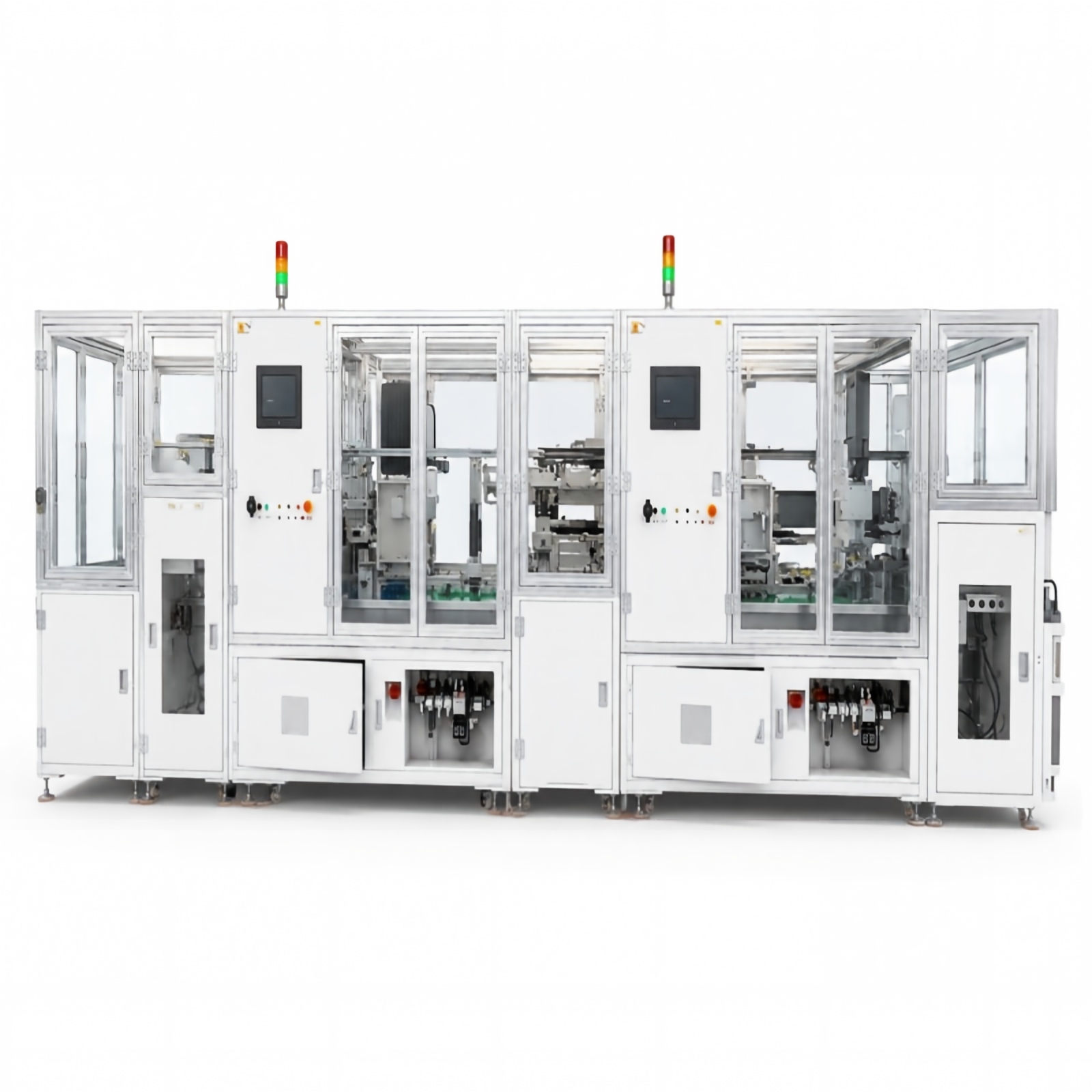

Fully Automatic External High-Speed Cable QSFP-DD Cable Preparing Line
This automatic wire preparing line integrates a series of precision workstations, including a manual loading table, lifter, UV laser stripping, aluminum foil swing, aluminum foil remove, CO2 laser stripping, dielectric remove, conductor pre-forming, and conductor final-trimming. It delivers a seamless automation solution specifically optimized for high-density, next-generation QSFP-DD cable assembly applications.
Product Specifications
Item |
Parameter |
| Rated Voltage | AC 220 V 50 Hz |
| Equipment Power | 15.4 kW 70A |
| Air Supply Pressure | 0.5-0.7 MPa |
| Material Transfer | Runner-type transfer |
| Fixture Reflow | Runner reflow |
| Standard Parts | Customer-specified brands |
| UV Laser Machine | 10 W power, galvanometer, water-cooled, industrial dust collector |
| CO2 Laser Machine | 50 W power, galvanometer, water-cooled, industrial dust collector |
| Dimensions | L 8,150 x W 1,500 x H 1,850 mm |
Core Strengths
Highly Integrated Production Line
Featuring a compact, multi-station linear layout, this line is capable of completing the full process of wire preparing for high-speed cable manufacturing in a single integrated workflow, drastically minimizing human intervention while boosting productivity.
Full Data Traceability
The system automatically logs complete production data, providing full-process tracking and rigorous quality verification. This robust data architecture provides a basis for continuous process optimization and rapid root-cause analysis.
System Interconnectivity & Smart Manufacturing Readiness
Standardized data communication interfaces are natively reserved for seamless integration with enterprise MES systems or proprietary web-based platforms, fully empowering manufacturers to achieve digitalized, smart production management.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
