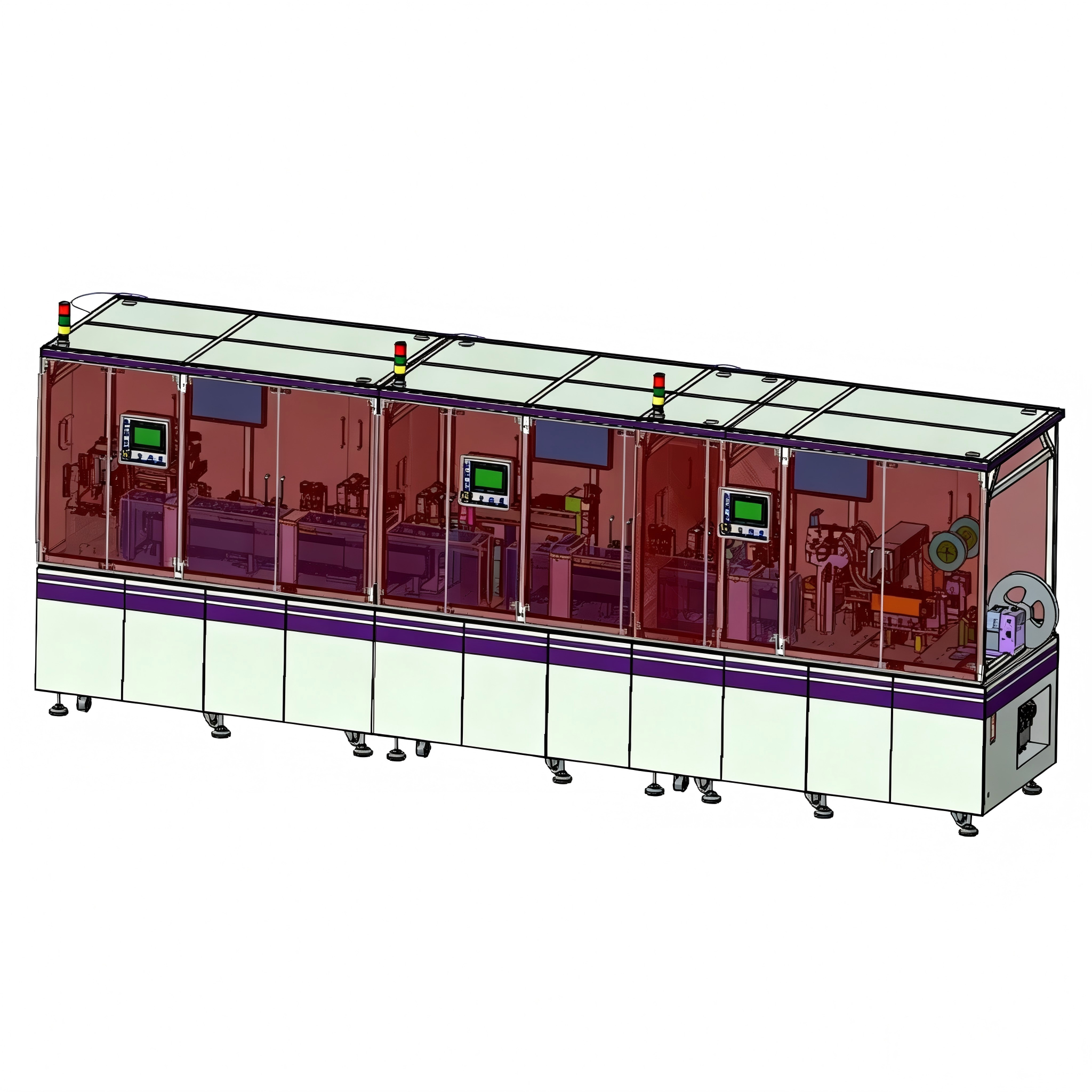

Fully Automatic Fakra Board-End Connector Assembly & Inspection Line
This Fakra connector assembly line is high-precision automated equipment specifically designed for board-end connector assembly, precisely crimping and assembling each component of the Fakra board-end connector into a complete connector. This line serves as automotive connector assembly equipment, enabling the entire process of automatic loading, automatic pin insertion, product testing, defective product discharge, and qualified product packaging.
Product Specifications
Item |
Parameter |
| Rated Voltage | AC 220V 50 Hz |
| Air Supply Pressure | 0.5-0.7 MPa |
| Standard Parts | Customer-specified brands |
| CT | < 5 s |
| OEE | ≥ 92% |
| Equipment Power | 15.4 kW 70 A |
| Material Transfer | Carrying-type transfer |
| Dimensions | L 5,600 × W 1,200 × H 1,950 mm |
| Yield | FPY (First Pass Yield) ≥ 99.5% |
| Capacity | UPH up to 1,300 pcs |
Core Strengths
Precision Crimping Control
High-precision servo motors, machine vision, and automated control systems ensure micron-level repeatability in inner & outer conductor crimping depth and component position, providing the fundamental guarantee for the product’s electrical performance.
Intelligent Quality Closed Loop
This line integrates real-time process monitoring and multi-station inspection systems to form an intelligent closed loop of processing-inspection-judgment. It can not only discharge defective products in real time but also automatically adjust process parameters through data feedback, enabling preventive quality control.
Seamless Production Line Integration
Standard reel packaging allows finished products to directly interface with customers’ fully automated SMT production lines, enabling full-process automation from connector manufacturing to PCB soldering, thereby eliminating human intervention and quality risks in intermediate processes.
Flexible Inspection & Traceability
This line supports simultaneous production of two types of terminal products in the same line. It integrates standardized pin insertion mechanisms, visual positioning, dimensions & appearance inspection, and crimping pressure monitoring to achieve 100% full inspection and full-process data upload for traceability.
Application Scenarios
Industry Focus: Specialized in the field of automotive electronics, applicable to ADAS (Advanced Driver Assistance Systems) and in-vehicle IoT modules.

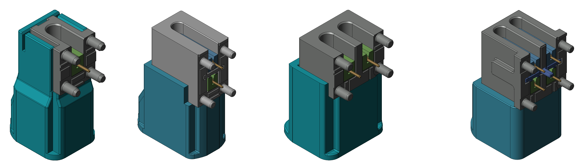

Applicable Products: Tailor-made for the assembly and inspection of Fakra/SMB board-end connectors (right-angle/vertical types).
Line Compatibility: Supports integration with SMT production lines to achieve 100% in-line inspection of PCBA .
