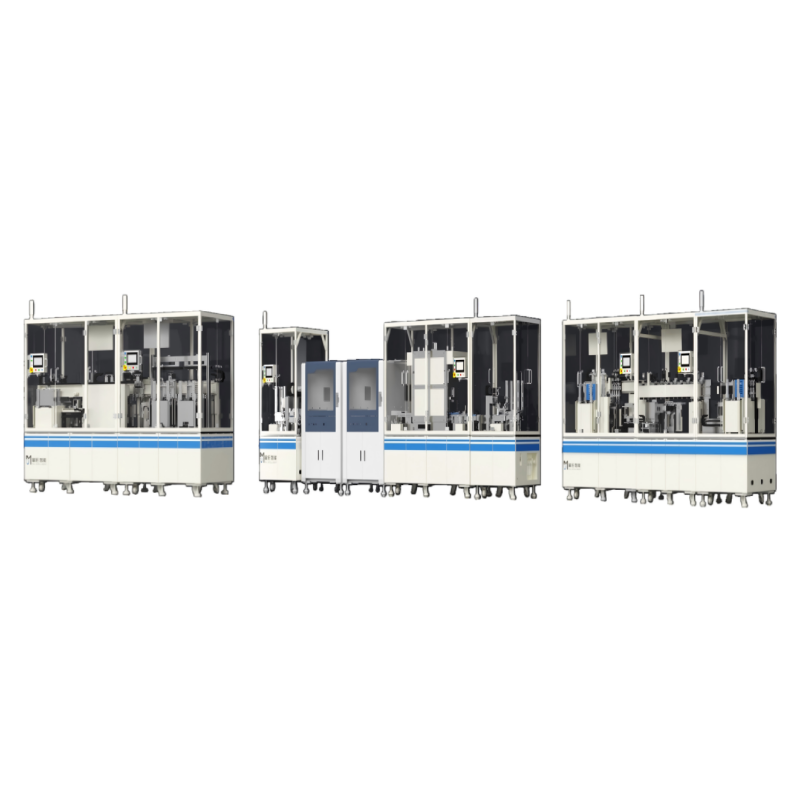

Fully Automatic PoP Connector Plating Automation Line (Pre/Post-Processing)
Specifically engineered for high-end consumer electronics connectors, this fully integrated connector plating line covers critical pre and post-processing stages, including rack loading, masking, glue removal, and unloading. It delivers full-process automated operation, significantly boosting productivity and product consistency while fulfilling the rigorous mass-production requirements for high-end PoP connector plating.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 11,000 x W 1,200 x H 2,000 mm
|
|
CT
|
≤ 1.3 s
|
|
OEE
|
90%
|
|
Yield
|
99.5%
|
|
Operating Voltage
|
AC 380 V±10%, 50/60 Hz
|
|
Operating Air Pressure
|
0.5–0.7 MPa
|
|
Equipment Power Consumption
|
≤ 45 kW
|
|
Communication Interfaces
|
EtherCAT, PROFINET, and TCP/IP
|
|
Safety Standards
|
CE/ISO 13849-1, safety light curtains + safety door interlocks
|
Core Strengths
High Precision & High Efficiency
High-accuracy positioning (±0.01 mm) and rapid-cycle operation increase productivity by 2,650%, significantly shortening delivery lead times.
Damage-Free Process
Mirror-finish treatment on all contact surfaces effectively eliminates surface scratches, ensuring comprehensive protection of the product's cosmetic quality.
Stability & Convenience
As a modular and highly adaptable piece of plating automation equipment, this system easily accommodates product iterations. It features a 90% utilization rate and a low machine failure rate to ensure continuous, stable line operation.
Precision Touch Tooling Design

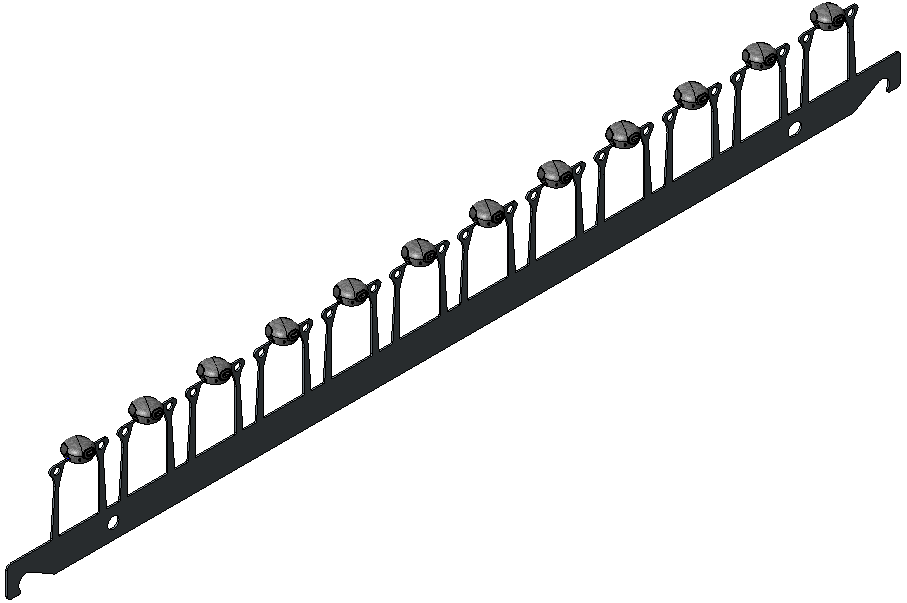

By leveraging an innovative plating rack structure, the line achieves precise product positioning and secure clamping. This design perfectly balances the requirements of high-frequency automated material handling with the rigorous demands of the plating process, effectively ensuring product quality and minimizing defect rates.
Application Scenarios
Industry Focus: Applied in fields like precision plating for consumer electronics products.
Applicable Products: Tailor-made for rack plating automation, glue masking, unloading, and other processes in the high-end connector plating process.
Line Compatibility: Supports seamless integration into the upstream, midstream, and downstream stages of plating production lines.
