Fully Automatic Ring and Nut Assembly Line (Spot Welding Integrated)
This is a fully automatic precision assembly line featuring a high-speed Maglev transport system and automatic spot welding technology. It is specifically engineered for the automated assembly and spot welding of miniature metal ring and precision nut. The multi-rotor maglev system and multi-point synchronous spot welding technology significantly improve productivity and throughput.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 4,740 × W 1,300 × H 1,800 mm
|
|
CT
|
1 s
|
|
OEE
|
85%
|
|
Yield
|
99%
|
Core Strengths
High Productivity
Independent control of multi-rotor maglev assembly system reduces product handling, achieving fast cycle time and high efficiency.
High-Precision Positioning
High repeatability ensures assembly consistency.
Multi-Point Synchronous Spot Welding
Multiple welding heads work together to complete several spots in one pass, delivering high welding efficiency.
Quick Change & Fast Iteration
Quick-change design on key stations enables easy maintenance; highly standardized mechanisms allow fast changeover, short redesign cycles, and low training costs.
Optional Configuration
- Nitrogen blowing device

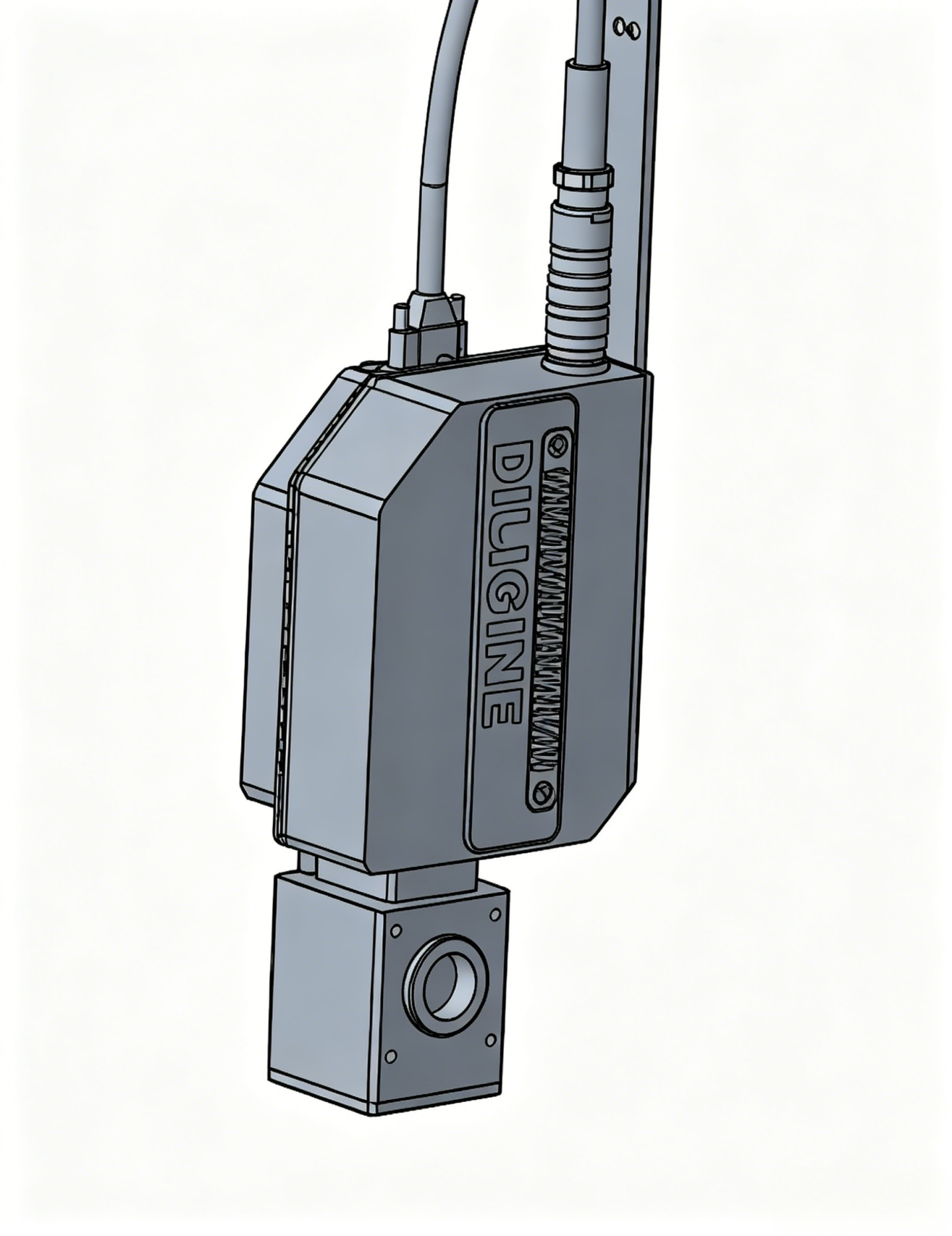

- Energy monitoring system (Real-time monitoring of welding energy ensures consistent and reliable welder joints, reducing defect rates.)
Application Scenarios
Industry Focus: Widely applied in 3C electronic connector, precision structural components, and other related fields.
Applicable Products: Tailor-made for the automatic assembly and spot welding of Ring & Nut assembly.
Line Compatibility: Supports semi-auto/fully-auto production modes; standalone operation/full-line integration.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
Related Product Recommendations
1.2 m/0.8 m Standardized Platform
Definition of Standardized Platform
This highly adaptable cable automation platform establishes a new benchmark for manufacturing through five pillars of standardization:
1. Equipment Dimensions Standardization (L×W×H): 1.2 m*1.2 m*1.9 m/0.8 m*1.2 m*1.9 m.
2. Electrical Control System Platformization: With unified PLC/IPC platform, standard I/O interfaces and communication protocols, modules are plug-and-play, and program recipes can be recalled with a single click, significantly reducing debugging time.
3. Mechanical Interface Platformization: All functional modules (pay-off, lacing, soldering, etc.) adopt unified mechanical interfaces and quick-change mechanisms for rapid mounting, dismounting, and function switching.
4. Process Platformization: Covers the complete process chain including aluminum foil stripping, insulation remove, soldering, and glue dispensing. Modules can be flexibly combined to match diverse product process requirements.
5. Safety Protection Standardization: Adopts unified physical guarding standards along with certified, compliant safety electrical components.
Fully Automatic CDFP High-Speed Cable Assembly Line
This state-of-the-art production line seamlessly integrates multiple stations, including automatic wire feeding & cross-wiring, UV laser aluminum foil stripping & swinging, aluminum foil remove, CO2 laser insulation stripping, insulation remove, pre-forming & final-trimming, Hot Bar soldering, an automatic clamp & fixture reflow system, and full MES integration.
Engineered for next-generation CDFP cable automation, this line utilizes high-precision servo systems and vision guidance to guarantee absolute assembly stability, significantly eliminating redundant operator movements while achieving true data-driven production.
Fully Automatic Izumi High-Speed Cable Assembly & Soldering Line
This modular, flexible automated line seamlessly integrates all processes – wire pay-off, lacing, aluminum foil stripping & remove, insulation stripping & remove, wire forming & trimming, soldering, and UV glue dispensing & curing. It is specifically engineered as a state-of-the-art automatic wire harness assembly line for the end-to-end processing of shielded/aluminum foil wire harnesses, coaxial cables, electronic lead wires, and ribbon cable assemblies.
Through a standardized platform and modular architecture, the line enables rapid changeovers, flexible manufacturing, and high equipment reuse rates—significantly boosting productivity, reducing labor dependency, and effectively conquering high-mix, low-volume market challenges.
