Fully Automatic SAS Connector Assembly Line with Inspection & Packaging
The line can realize F/N assembly, and the cutting, pin insertion, and bending for 15-pin, 6-pin, 2+3-pin, 7-pin, and 35-pin terminals. Besides, it employs automated vision inspection system to verify product dimensions, and automatically sorts out the NG (No Good) products. After assembling good products with CAP, it completes the process on an integrated connector packaging line via tape & reel. It achieves fully automatic assembly and flexible production with one-click changeover.
Product Specifications
Item |
Parameter |
|
Rated Voltage
|
AC 220V 50 Hz
|
|
Equipment Power
|
22 kW 100 A
|
|
Air Supply Pressure
|
0.5-0.7 MPa
|
|
Material Transfer
|
Mechanical cam transfer and servo motor-driven feeding
|
|
Standard Parts
|
Customer-specified brands
|
|
Dimensions
|
L 22,200 × W 1,200 × H 2,000 mm
|
|
Equipment Accuracy
|
X-Axis Repeatability: ±0.01 mm Y-Axis Repeatability: ±0.01 mm Z-Axis Repeatability: ±0.01 mm Equipment Assembly Accuracy: ±0.01 mm |
|
Equipment CT
|
< 3.0 s/pcs
|
|
Utilization
|
> 90%
|
|
OEE
|
88%
|
|
Yield
|
> 98%
|
Core Strengths
Multi-Process Fully Automated Assembly System
This line can achieve fully automated welding, IMD terminal insertion, mold forming, inspection and packaging.
In-Line Vision Inspection System
It is equipped with a 2D & 3D Automated Optical Inspection (AOI) system to verify product dimensions.
Multi-Part Number Assembly System
It is also equipped with a highly flexible assembly & inspection system to achieve one-click switching among products with different part numbers for production.
Application Scenarios
Industry Focus: Widely applied in communications, servers, storage equipment, and other related fields.

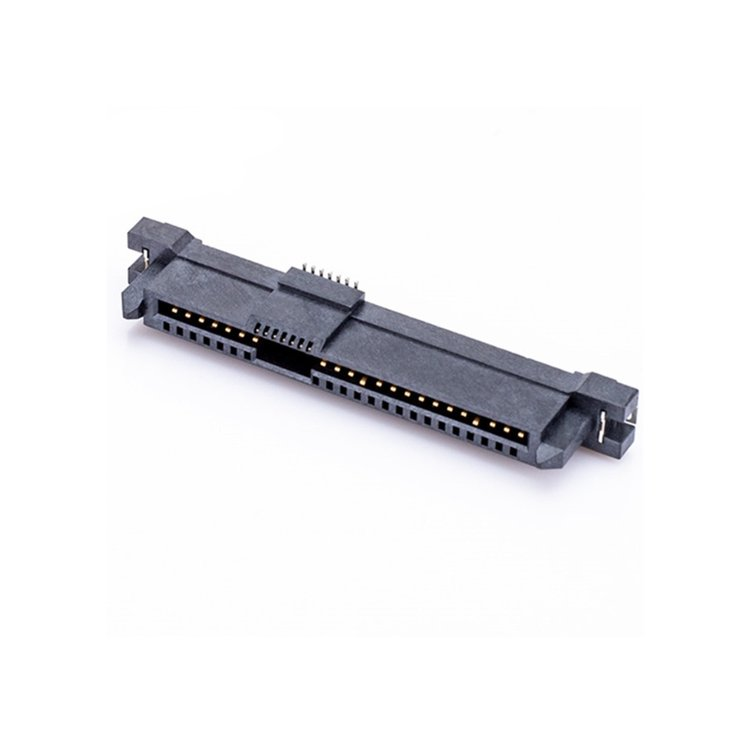

Applicable Products: Tailor-made for SAS connector assembly and inspection.
Line Compatibility: Support fully automatic, program switching for same-structure different P/N.
Request Quote Online
Fill in the information below, we will provide you with a professional quotation within 24 hours
Contact Information
Service Commitment
- 24-hour quote response
- Free technical solution design
- On-site demonstration and training
- One-year warranty, lifetime maintenance
Related Product Recommendations
1.2 m/0.8 m Standardized Platform
Definition of Standardized Platform
This highly adaptable cable automation platform establishes a new benchmark for manufacturing through five pillars of standardization:
1. Equipment Dimensions Standardization (L×W×H): 1.2 m*1.2 m*1.9 m/0.8 m*1.2 m*1.9 m.
2. Electrical Control System Platformization: With unified PLC/IPC platform, standard I/O interfaces and communication protocols, modules are plug-and-play, and program recipes can be recalled with a single click, significantly reducing debugging time.
3. Mechanical Interface Platformization: All functional modules (pay-off, lacing, soldering, etc.) adopt unified mechanical interfaces and quick-change mechanisms for rapid mounting, dismounting, and function switching.
4. Process Platformization: Covers the complete process chain including aluminum foil stripping, insulation remove, soldering, and glue dispensing. Modules can be flexibly combined to match diverse product process requirements.
5. Safety Protection Standardization: Adopts unified physical guarding standards along with certified, compliant safety electrical components.
Fully Automatic CDFP High-Speed Cable Assembly Line
This state-of-the-art production line seamlessly integrates multiple stations, including automatic wire feeding & cross-wiring, UV laser aluminum foil stripping & swinging, aluminum foil remove, CO2 laser insulation stripping, insulation remove, pre-forming & final-trimming, Hot Bar soldering, an automatic clamp & fixture reflow system, and full MES integration.
Engineered for next-generation CDFP cable automation, this line utilizes high-precision servo systems and vision guidance to guarantee absolute assembly stability, significantly eliminating redundant operator movements while achieving true data-driven production.
Fully Automatic Izumi High-Speed Cable Assembly & Soldering Line
This modular, flexible automated line seamlessly integrates all processes – wire pay-off, lacing, aluminum foil stripping & remove, insulation stripping & remove, wire forming & trimming, soldering, and UV glue dispensing & curing. It is specifically engineered as a state-of-the-art automatic wire harness assembly line for the end-to-end processing of shielded/aluminum foil wire harnesses, coaxial cables, electronic lead wires, and ribbon cable assemblies.
Through a standardized platform and modular architecture, the line enables rapid changeovers, flexible manufacturing, and high equipment reuse rates—significantly boosting productivity, reducing labor dependency, and effectively conquering high-mix, low-volume market challenges.
