Fully Automatic Type-C Connector Assembly Line & Connector Spot Welding Line (Multi-Station)
This is an automatic connector assembly line integrating precision cutting & transfer, aligning and welding. The integrated cutting & transfer unit ensures superior efficiency and accuracy of cutting and assembly, significantly boosting productivity and equipment stability.
Product Specifications
Item |
Parameter |
|
Rated Voltage
|
AC 220V 50 Hz
|
|
Equipment Power
|
3 kW 136 A
|
|
Air Supply Pressure
|
0.5-0.7 MPa
|
|
Material Transfer
|
Mechanical cam transfer and motor-driven ratchet feeding
|
|
Standard Parts
|
Customer-specified brands
|
|
Dimensions
|
L 22,200 × W 1,200 × H 2,000 mm
|
|
Equipment Accuracy
|
X-axis repeatability: ±0.01 mm Y-axis repeatability: ±0.01 mm Z-axis repeatability: ±0.01 mm Equipment assembly accuracy: ±0.01 mm |
|
Equipment CT
|
0.8 s
|
|
Yield
|
> 99%
|
|
OEE
|
85%
|
Core Strengths
Patented Core Technologies
Features self-developed cutting & transfer integrated unit, rotary aligning & positioning device, and automatic welding unit (multiple national patents), ensuring assembly precision and consistency.
Composite Assembly System of Mechanical Cam and Electronic Cam
This equipment innovatively replaces traditional lead screw and cylinder structures with mechanical cam and electronic cam structure, substitutes multi-piece assembly technique with single-piece assembly process, and employs mold cutting instead of conventional groove cutting. These advancements significantly enhance assembly speed and precision.
Modular Standardized Architecture
This equipment unifies equipment frameworks, process modules, and electrical controls into a standardized configuration to enable rapid changeover, ensure consistency, and significantly reduce operational & maintenance costs and overdependence on specialized skills.
Zero-Wait Material Replenishment
Through material strip welding or automatic switching between dual modules, material replenishment can be achieved with no need for equipment shutdown, thereby improving efficiency.
Digital Traceability & Quality Management
This equipment deeply integrates with MES (Manufacturing Execution System) to record critical production parameters and quality data in real time, establishing a comprehensive product traceability system that supports quality analysis and continuous optimization.
Safe & Eeco-Friendly
Standard equipped with fume extraction unit and light-shielding unit to protect operator health and safety.
Optional Configuration

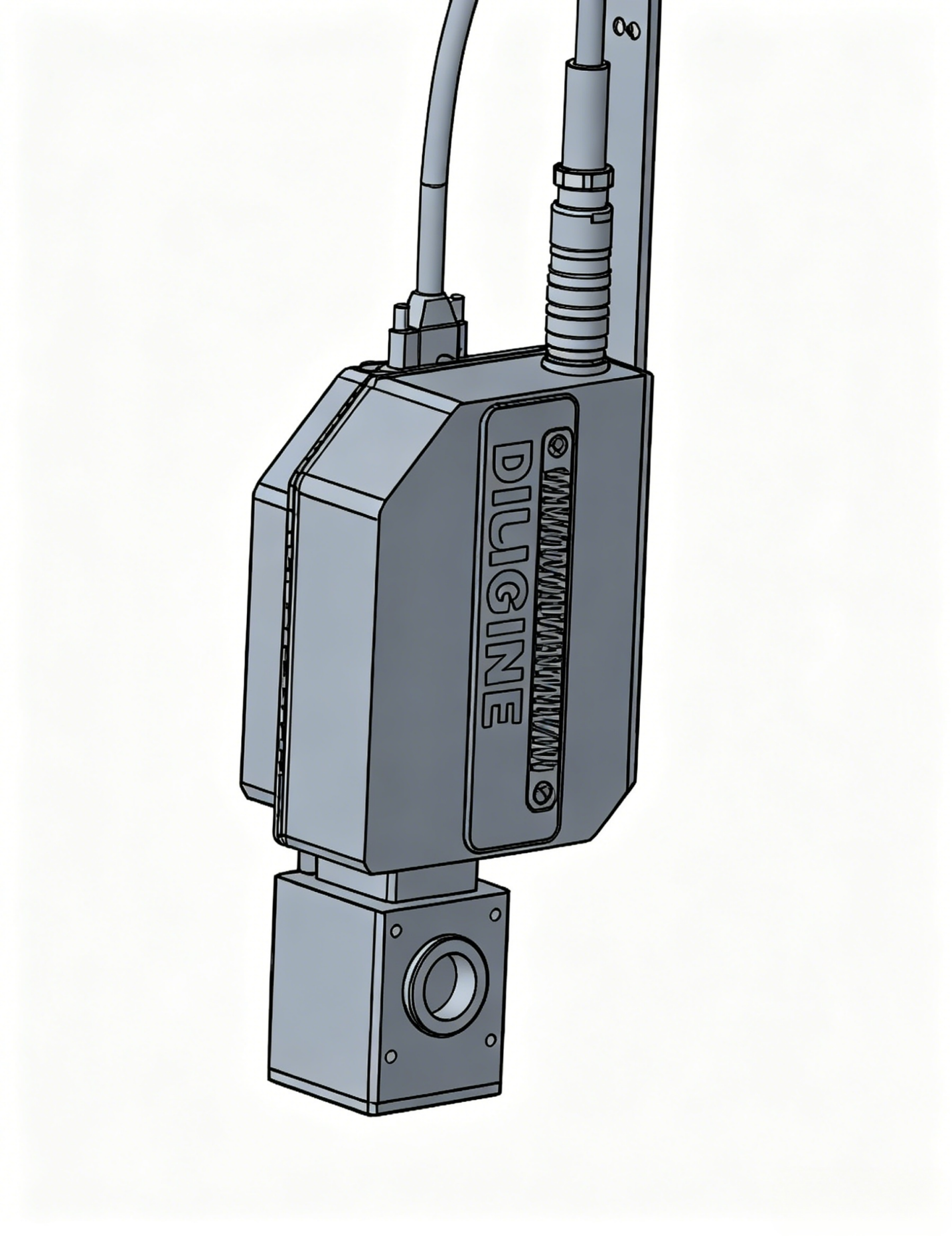

Energy monitoring system (Real-time monitoring of welding energy ensures consistent and reliable solder joints, reducing defect rates.)
Application Scenarios
Industry Focus: Widely applied in the field of 3C electronic connector (Type-C).
Applicable Products: Tailor-made for the assembly and spot welding of Type-C connectors.
Line Compatibility: Supports semi-auto/fully-auto production modes, and standalone operation/full-line integration.
