Fully Automatic Type-C Connector Assembly & Spot Welding Line
This automatic Type-C connector assembly line is a fully automatic solution integrating glue inspection, OM & Housing Assembly, upper/lower shell assembly, and spot welding. Featuring a multi-rotor maglev system for high productivity and a dual-tray feeding mechanism for zero-downtime reloading, this line significantly shortens reloading time and increases throughput.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 18,690 × W 1,200 × H 2,230 mm
|
|
CT
|
0.8 s
|
|
OEE
|
85%
|
|
Yield
|
99%
|
Core Strengths
High Productivity & Efficiency
Dual-tray and dual-channel enable non-stop material change; rotary platforms save floor space. The equipment achieves high OEE and fast cycle time.
Quick-Change & Cost-Saving Iteration
Quick-change design on key stations simplifies maintenance. Highly standardized mechanisms allow fast changeover, common spare parts, short redesign cycles, and low training costs.
Smart Maglev Assembly Line
Features an advanced multi-rotor maglev assembly line system with independent synchronous control, achieving micron-level positioning accuracy, zero mechanical wear contamination, and optimized process decoupling.
Optional Configuration
- Nitrogen blowing device

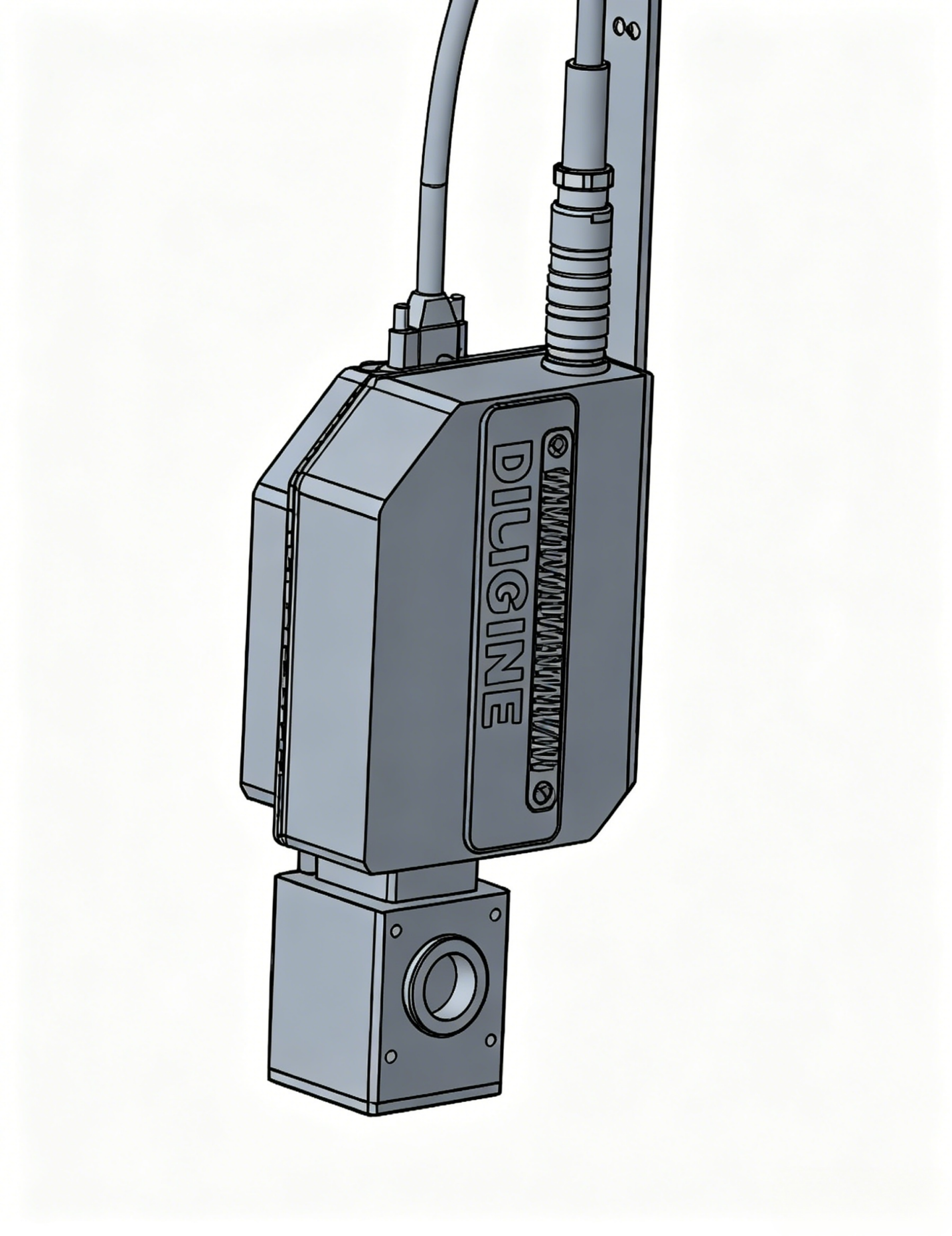

- Energy monitoring system (Real-time monitoring of welding energy ensures consistent and reliable welder joints, reducing defect rates.)
Applications
Industry Focus: Widely applied in the field of 3C electronic connector (Type-C).
Target Products: Tailor-made for the automatic connector spot welding and precision assembly of Type-C connectors.
Line Compatibility: Supports semi-auto/fully-auto production modes; standalone operation/full-line integration.
