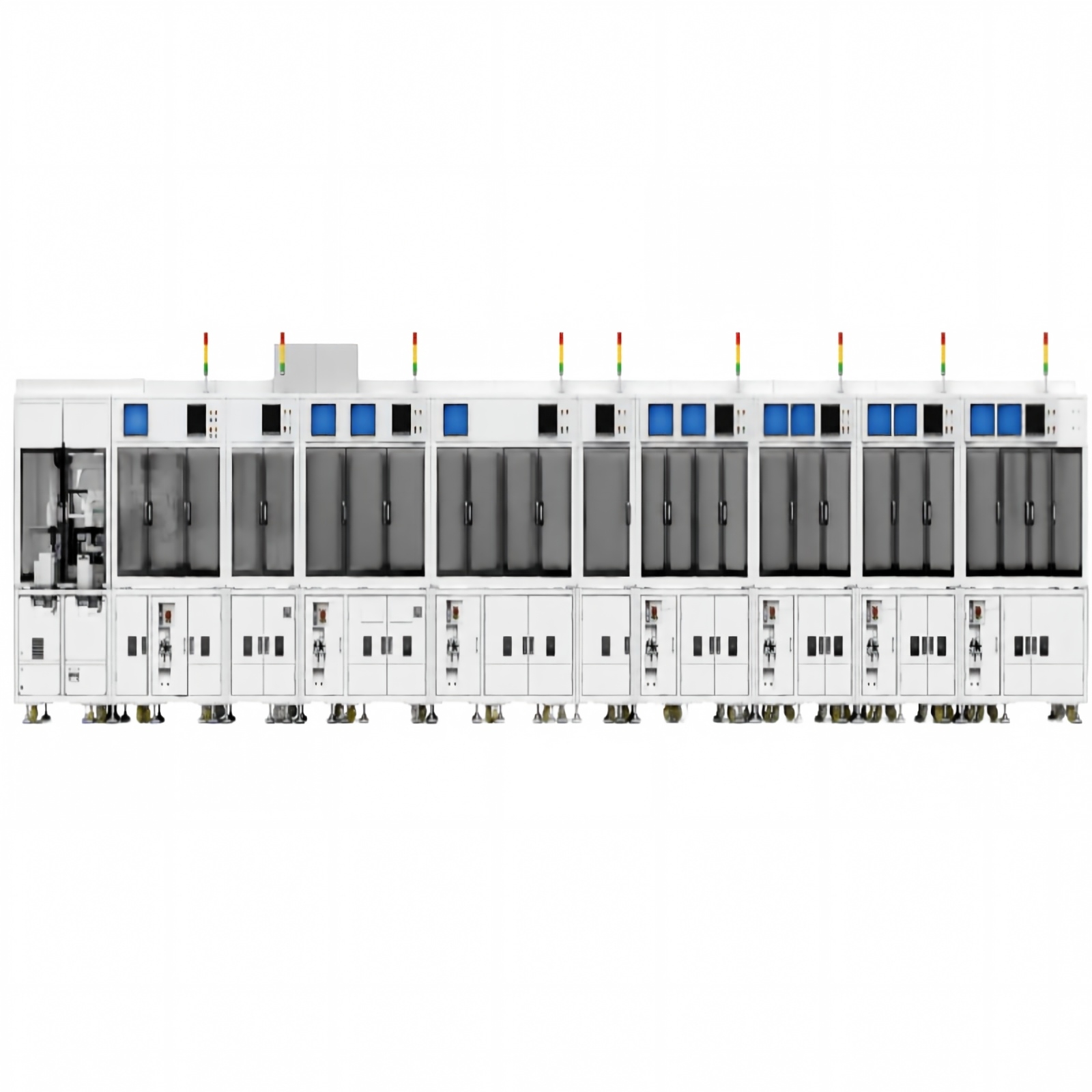

Fully Automatic Type-C Connector Final Inspection Line
This is a fully automatic Type-C connector final inspection line integrating an advanced connector vision inspection system. It operates as a high-speedd automatic testing line specifically engineered for the final appearance, dimension, and tightness testing of Type-C connector. By utilizing an automatic loading device (tray), the line achieves unmanned loading, effectively reducing labor costs while improving productivity.
Product Specifications
Item |
Parameter |
|---|---|
|
Dimensions
|
L 14,020 × W 1,200 × H 2,230 mm
|
|
CT
|
0.8 s
|
|
OEE
|
85%
|
|
Yield
|
99%
|
Core Strengths
Multi-In-One Inspection
Integrates appearance, dimension & airtightness tests in one station, saving equipment investment costs and floor space.
Quick-Change & Worry-Free
Key stations with quick change, model change without long downtime; modular design with common spare parts, easy maintenance.
Optional Configuration
Automatic robotic coupling system (Optional robotic feeding for fully automated front-to-end material flow, reducing manual handling and boosting line efficiency)
Application Scenarios
Industry Focus: Widely applied in the field of 3C electronic connector (Type-C).

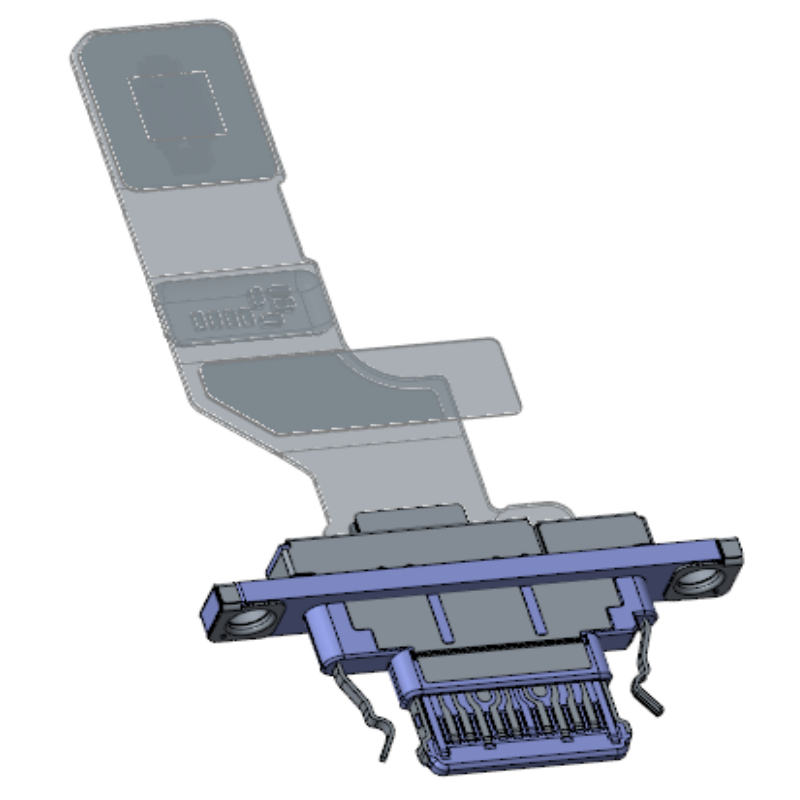

Applicable Products: Tailor-made for the final inspection of Type-C connector.
Line Compatibility: Supports semi-auto/fully-auto production modes; standalone operation/full-line integration.
