In-Line Vision Inspection Machine

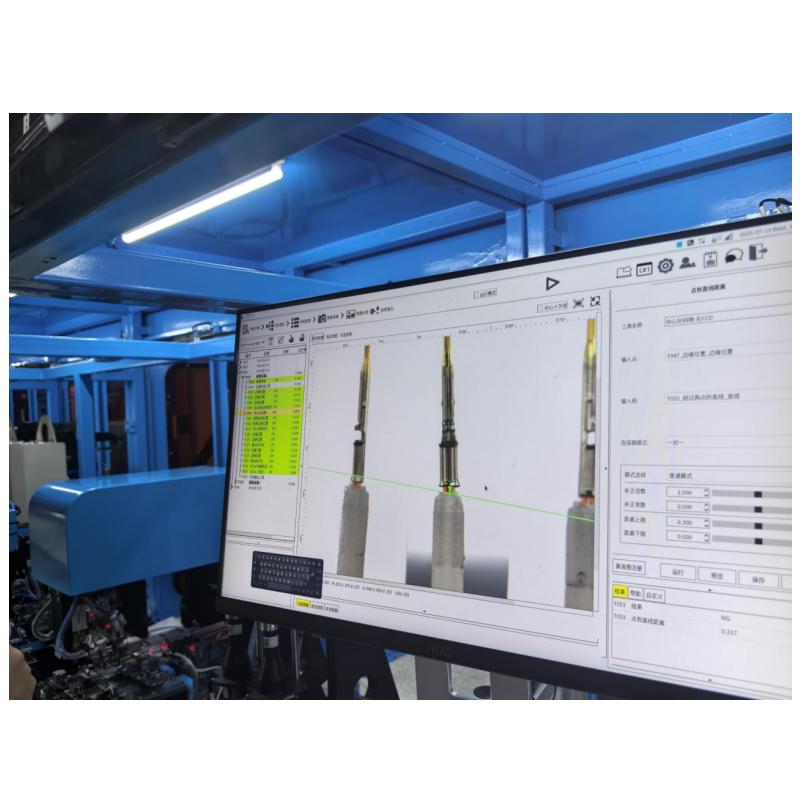

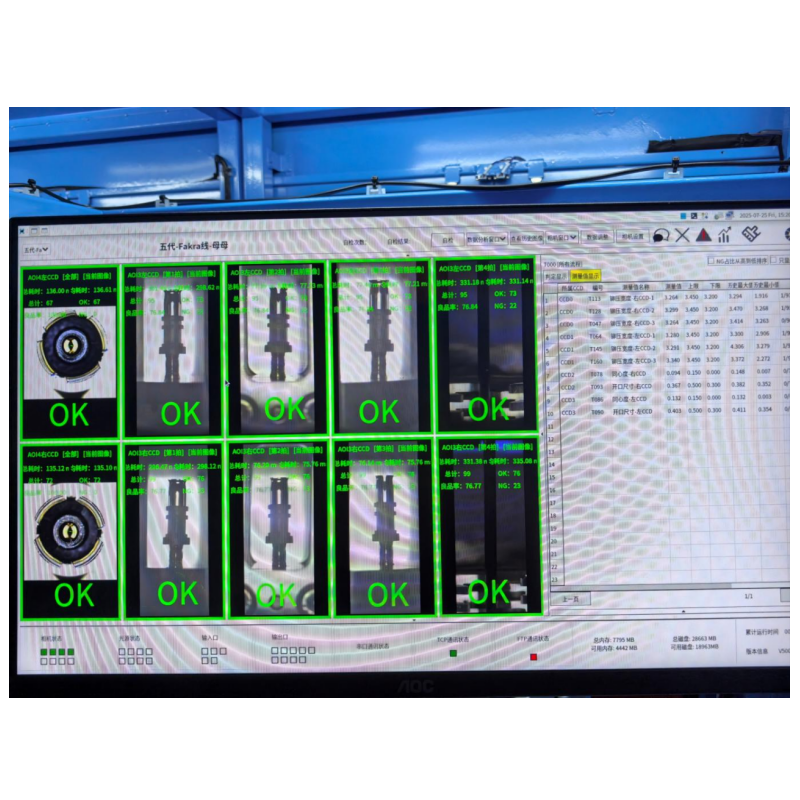

This is an in-line vision inspection machine integrating high-precision industrial cameras with AI-based vision algorithms. It is specifically engineered to provide real-time vision inspection for dimensional measurements and serves as an advanced automatic defect detection machine for precision components. With millisecond-level image analysis, it achieves micron-level inspection accuracy, effectively replacing manual quality inspection and significantly improving yield.
Product Specifications
Item |
Parameter |
|---|---|
|
Inspection Accuracy
|
±0.01 mm (typical)
|
|
Inspection Speed
|
≥ 120 pcs/min
|
|
False Positive Rate
|
≤ 0.1% (dimensional) / ≤ 0.5% (defect)
|
|
Minimum Detectable Defect
|
Area > 0.2 mm²
|
|
False Negative Rate
|
Burrs ≤ 0.1%; others depend on specific defect type
|
Note: Actual inspection values are subject to testing on physical samples.
Core Strengths
Labor Reduction
A single machine can replace multiple inspectors, significantly boosting inspection efficiency.
High Speed & Precision
Micron-level accuracy, millisecond-level inspection, and no cycle time delayed.
Low False Positive Rate
Industry-leading false positive rates for dimensional and defect inspection.
Flexible Adaptation
Capable of detecting various types of defects and customized according to specific projects.
Key Capabilities

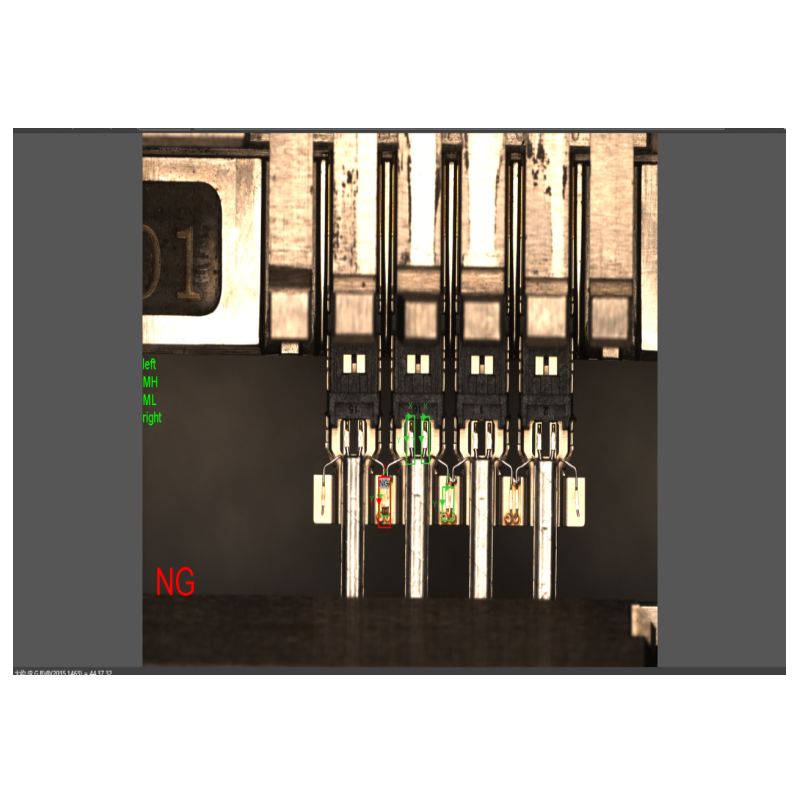

Detectable Defects: Missing solder, cold joint (poor wetting) misalignment, burrs, etc. (customizable as per project)
The algorithm can be iteratively upgraded to meet the inspection requirements of new products.
Applications
Industry Focus: 3C high-speed cables, automotive wire harnesses, communication equipment, and consumer electronics connectors.
Target Products: Terminal crimping, wire stripping, solder joints, electrode sheets, etc.
Line Compatibility: Fully automatic in-line inspection, supports integration into existing production lines.
